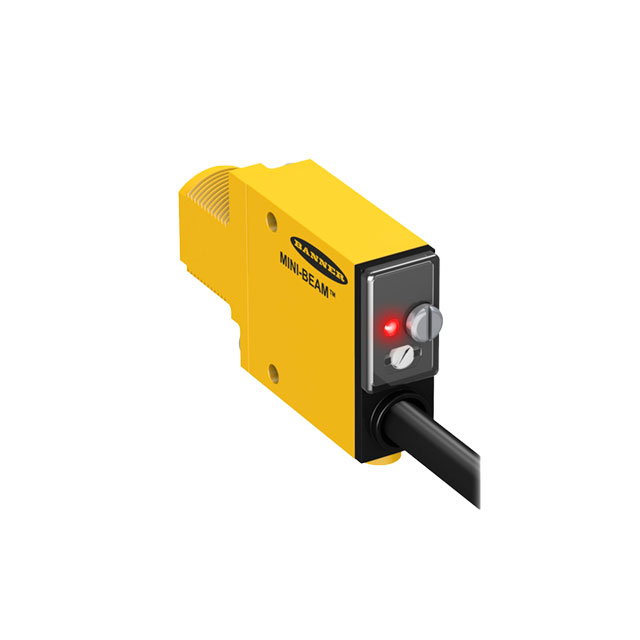

PHOTOELECTRIC SENSOR, SM312 SERIES, MINI-BEAM, CONVERGENT, 16MM, NPN / PNP, 10-30VDC, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SM312CV

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, SM312 SERIES, MINI-BEAM, CONVERGENT, 16MM, NPN / PNP, 10-30VDC, PRE-WIRED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM312CV

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 IEC IP67
Light Source	RED (650nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	1 ms
Sensing Distance	16 mm
Sensing Distance	0.63 in
Sensing Method	Convergent
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

SM312 Series

Part	Sensing Distance	Sensing Distance	Response Time	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Connection Method	Light Source	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length
BANNER ENGINEERING SM312WQD	130 mm	5.118 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQDP-68020	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312FV			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Cable	LED	NPN/PNP	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312FVBQD			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	LED	NPN/PNP	-20 C	70 °C
BANNER ENGINEERING SM312CV	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312LVQD	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVMHS	5 m	196.85 in	0.3 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312CVQD	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Red LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVQD-50939	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQD	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 158.00
Newark	Each	1	$ 156.66

Description

General part information

SM312 Series

The SM312CV is a self-contained DC-operated Convergent Mode Sensor with rugged epoxy-encapsulated, reinforced PBT thermoplastic polyester housing, totally encapsulated, o-ring sealing, acrylic lenses and stainless steel screw construction. Switch-selectable for light operate or dark operate, includes Banner's exclusive AID™ alignment system. Physically and electrically interchangeable with 18mm barrel-type photoelectric.
