SM312DQD

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, SM312 SERIES, MINI-BEAM, DIFFUSE, 380MM, NPN / PNP, 10-30VDC, QUICK DISCONNECT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM312DQD

Connection Method	Connector
Ingress Protection	6, 12, NEMA 1, 3S, 2, 4, 4X, 3, IEC IP67
Light Source	Infrared LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	1 ms
Sensing Distance	380 mm
Sensing Distance	14.961 in
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

SM312 Series

Part	Sensing Distance	Sensing Distance	Response Time	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Connection Method	Light Source	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length
BANNER ENGINEERING SM312WQD	130 mm	5.118 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQDP-68020	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312FV			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Cable	LED	NPN/PNP	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312FVBQD			1 ms	Fiber Optic	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	LED	NPN/PNP	-20 C	70 °C
BANNER ENGINEERING SM312CV	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312LVQD	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVMHS	5 m	196.85 in	0.3 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Cable	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C	78.74 in	2 m
BANNER ENGINEERING SM312CVQD	16 mm	0.63 in	1 ms	Convergent	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Red LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312LVQD-50939	5 m	196.85 in	1 ms	NonPolarized Retroreflective	30 VDC	10 VDC	NEMA 1 2 3 3S 4 4X 6 12 IEC IP67	Connector	RED (650nm)	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C
BANNER ENGINEERING SM312DQD	380 mm	14.961 in	1 ms	Diffuse	30 VDC	10 VDC	12 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Connector	Infrared LED	NPN/PNP - Dark-ON/Light-ON	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 148.00
Newark	Each	1	$ 146.93

Description

General part information

SM312 Series

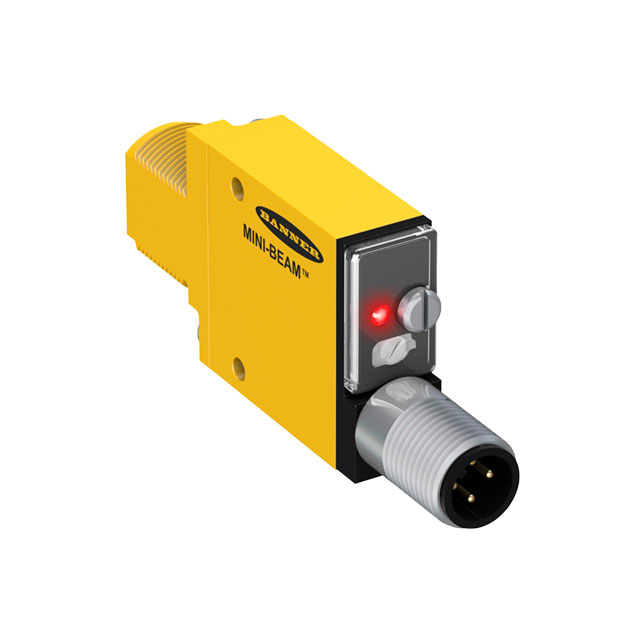

The SM312DQD is a self-contained DC-operated Diffuse Mode Sensor with rugged epoxy-encapsulated, reinforced PBT thermoplastic polyester housing, totally encapsulated, o-ring sealing, acrylic lenses and stainless steel screw construction. Switch-selectable for light operate or dark operate, includes Banner's exclusive AID™ alignment system. Physically and electrically interchangeable with 18mm barrel-type photoelectric.
