Technical Specifications
Parameters and characteristics for this part
| Specification | G125-2249600-02-08-02 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Mating Flange, Polarizing Key |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 12 |
| Number of Positions [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
| Row Spacing | 1.25 mm |
| Row Spacing | 0.049 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.64 | |
| 10 | $ 7.78 | |||
| 30 | $ 7.33 | |||
| 50 | $ 7.14 | |||
| 100 | $ 6.95 | |||
| 250 | $ 6.20 | |||
| 500 | $ 5.83 | |||
| 1000 | $ 5.15 | |||
Description
General part information
G125-224 Series

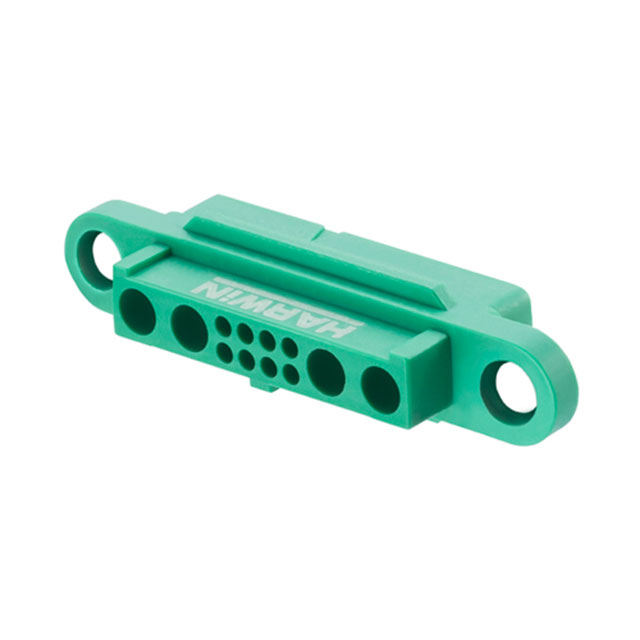

12 (8 + 4 Power) Rectangular Connectors - Housings Receptacle Green 0.049" (1.25mm)
