G125-2242696F2

Active

Harwin Inc.

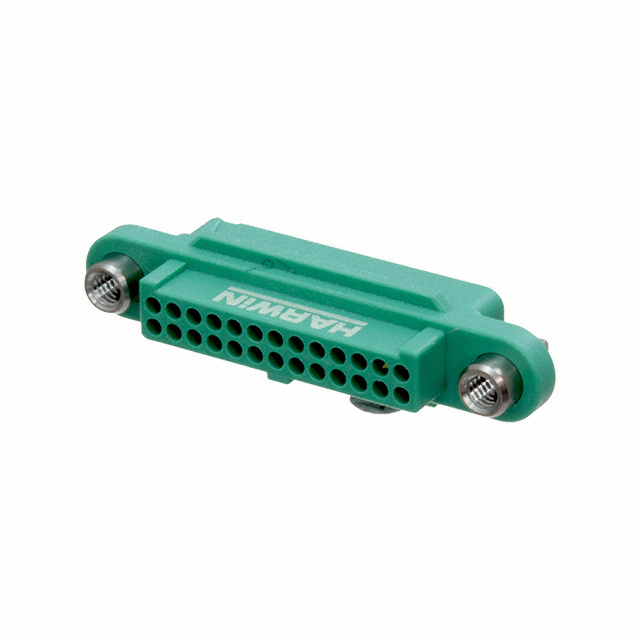

13+13 POS. FEMALE DIL CABLE HOUSING, SCREW-LOK REVERSE FIX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Technical Data Sheet EN +7

G125-2242696F2

Active

Harwin Inc.

13+13 POS. FEMALE DIL CABLE HOUSING, SCREW-LOK REVERSE FIX

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Technical Data Sheet EN +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-2242696F2

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Threaded Inserts, Polarizing Key, Mating Flange
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-224 Series

Part	Number of Rows	Number of Positions	Note	Pitch [x]	Pitch [x]	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Insulation Material	Connector Type	Row Spacing	Row Spacing	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Harwin Inc. G125-224269600	2	26	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2240696F3	2	6	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2245096F1	2	50	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2242696F2	2	26	Contacts Not Included	0.049 in	1.25 mm	Mating Flange Polarizing Key Threaded Inserts	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in	Free Hanging (In-Line)
Harwin Inc. G125-2241096F3	2	10	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-224109600	2	10	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2241096F1	2	10	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2240696F1	2	6	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2249600-02-08-02	2		Contacts Not Included	0.049 in	1.25 mm	Mating Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in	Free Hanging (In-Line)	4	12	8
Harwin Inc. G125-224129600	2	12	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.89
		10	$ 11.42
		25	$ 10.98
		50	$ 10.54
		100	$ 9.96
		250	$ 9.08
		500	$ 8.49
		1000	$ 7.79
Newark	Each	1	$ 13.75
		50	$ 12.47
		100	$ 11.43
		250	$ 10.62
		500	$ 9.92

Description

General part information

G125-224 Series

26 Rectangular Connectors - Housings Receptacle Green 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-2242696F2

Deep-Dive with AI

G125-2242696F2

Deep-Dive with AI

Technical Specifications

G125-224 Series

Pricing

Description

G125-224 Series

Documents

Manufacturer Catalogue EN

Technical Data Sheet EN

Enhanced Product Overview EN

Drawing EN

One Page Summary EN

G125 Spec Sheet

Datasheet

G125-2040696L0

G125-224069600

G125-224 Series
