G125-2240696F1

Active

Harwin Inc.

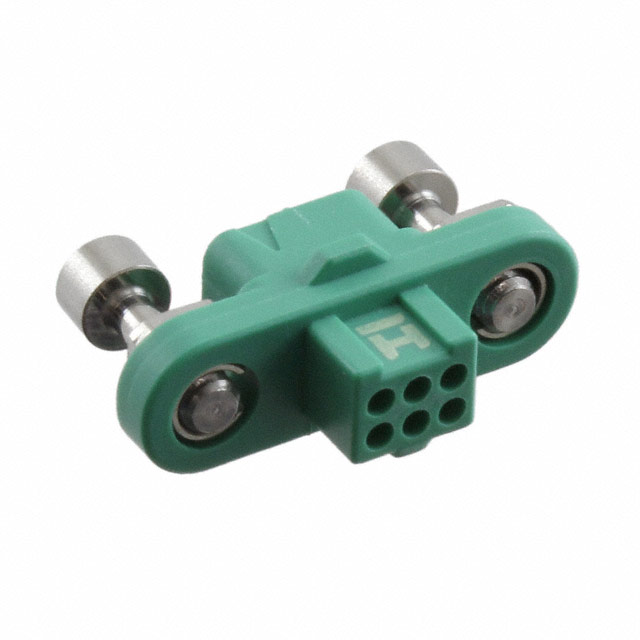

RECTANGULAR CONNECTOR, BLACK / GREEN, GECKO SL G125 SERIES, 6 CONTACTS, RECEPTACLE, 1.25 MM, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Manufacturer Catalogue EN +6

G125-2240696F1

Active

Harwin Inc.

RECTANGULAR CONNECTOR, BLACK / GREEN, GECKO SL G125 SERIES, 6 CONTACTS, RECEPTACLE, 1.25 MM, CRIMP

Deep-Dive with AI

DocumentsProduct Change Notice EN Manufacturer Catalogue EN +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-2240696F1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Mounting Flange, Jackscrews, Polarizing Key
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-224 Series

Part	Number of Rows	Number of Positions	Note	Pitch [x]	Pitch [x]	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Insulation Material	Connector Type	Row Spacing	Row Spacing	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Harwin Inc. G125-224269600	2	26	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2240696F3	2	6	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2245096F1	2	50	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2242696F2	2	26	Contacts Not Included	0.049 in	1.25 mm	Mating Flange Polarizing Key Threaded Inserts	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in	Free Hanging (In-Line)
Harwin Inc. G125-2241096F3	2	10	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-224109600	2	10	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2241096F1	2	10	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2240696F1	2	6	Contacts Not Included	0.049 in	1.25 mm	Jackscrews Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in
Harwin Inc. G125-2249600-02-08-02	2		Contacts Not Included	0.049 in	1.25 mm	Mating Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in	Free Hanging (In-Line)	4	12	8
Harwin Inc. G125-224129600	2	12	Contacts Not Included	0.049 in	1.25 mm	Mounting Flange Polarizing Key	Female Socket	-65 ░C	150 °C	Green	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	1.25 mm	0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.63
		10	$ 11.20
		30	$ 10.77
		50	$ 10.34
		100	$ 9.76
		250	$ 8.90
		500	$ 8.33
		1000	$ 7.64
Newark	Each	1	$ 11.16
		5	$ 10.13
		10	$ 9.10
		25	$ 8.49
		50	$ 7.88
		100	$ 7.42
		250	$ 6.83

Description

General part information

G125-224 Series

6 Rectangular Connectors - Housings Receptacle Green 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-224069600

Datasheet

G125 Spec Sheet

Datasheet
