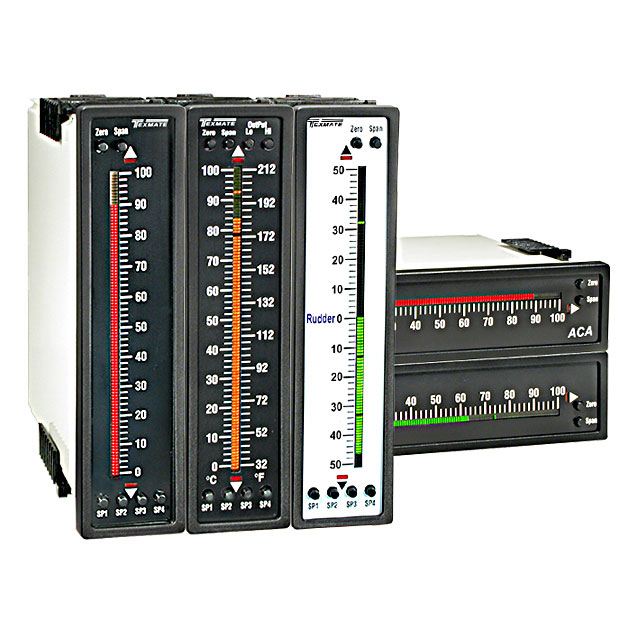

FL-B101Q-ACV
ActiveTexmate
0-600VAC RMS BARGRAPH CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FL-B101Q-ACV
ActiveTexmate
0-600VAC RMS BARGRAPH CONTROLLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FL-B101Q-ACV |
|---|---|
| Display Type | LED - Red Bar Graph |
| Measuring Range [Max] | 600 VAC |
| Measuring Range [Min] | 200 VAC |
| Measuring Type | Voltage |
| Output Type | Relay (2), Analog |
| Panel Cutout Dimensions [x] | 144.53 mm |
| Panel Cutout Dimensions [y] | 36.07 mm |
| Termination Style | Screw Terminal |
| Type | Voltmeter |
| Voltage - Supply [Max] | 265 VAC, 300 VDC |
| Voltage - Supply [Min] | 95 VDC, 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 722.00 | |
Description
General part information
FL-B101Q Series
Voltmeter LED - Red Bar Graph Display Panel Mount
