FL-B101Q-DCV
ActiveTexmate
2V, 20V, 200VDC BARGRAPH CONTROL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FL-B101Q-DCV
ActiveTexmate
2V, 20V, 200VDC BARGRAPH CONTROL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FL-B101Q-DCV |
|---|---|
| Display Type | LED - Red Bar Graph |
| Measuring Range [Max] | 200 V |
| Measuring Range [Min] | 2 VDC |
| Measuring Type | Process |
| Panel Cutout Dimensions [x] | 144.53 mm |
| Panel Cutout Dimensions [y] | 36.07 mm |
| Termination Style | Screw Terminal |
| Type | Process Meter |
| Voltage - Supply [Max] | 265 VAC, 300 VDC |
| Voltage - Supply [Min] | 95 VDC, 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 664.00 | |
Description
General part information
FL-B101Q Series

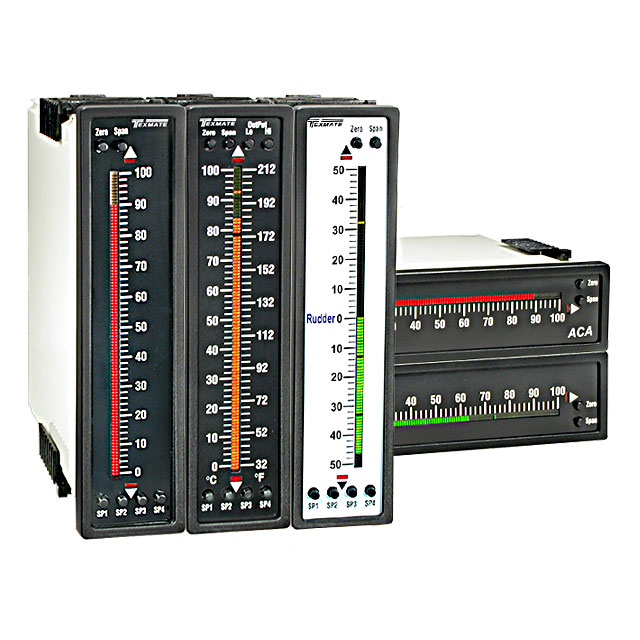

Process Meter LED - Red Bar Graph Display Panel Mount
