PXM6012/03P/ST

Active

BULGIN LIMITED

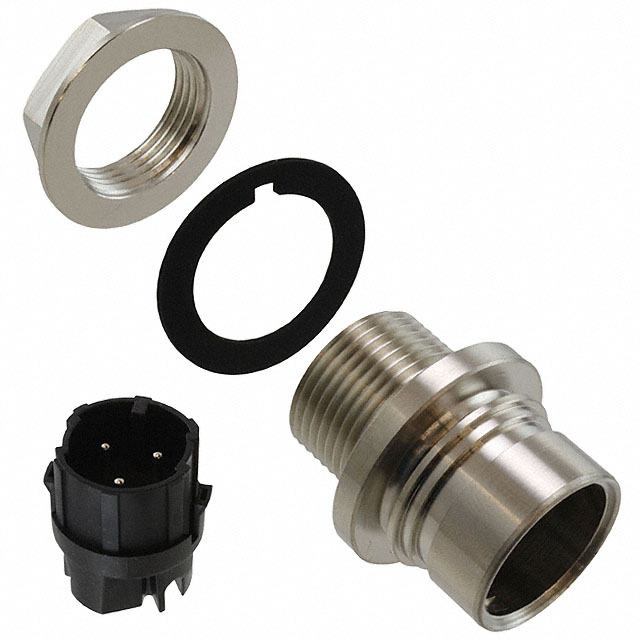

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW PIN, PUSH-PULL

Deep-Dive with AI

Search across all available documentation for this part.

Documents6000 Series Metal Wiring Instr 6000 Series - Ethernet Buccaneer +3

PXM6012/03P/ST

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 6000 SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW PIN, PUSH-PULL

Deep-Dive with AI

Documents6000 Series Metal Wiring Instr 6000 Series - Ethernet Buccaneer +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6012/03P/ST

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	11 A, 16 A
Fastening Type	Push-Twist
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

PXM6012 Series

Part	Connector Type	Fastening Type	Ingress Protection	Contact Type	Orientation	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Note	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Housing Color	Mounting Feature	Shell Material	Shielding	Primary Material	Includes	Number of Positions	Termination	Contact Finish - Mating	Color	Contact Material	Current Rating (Amps)	Voltage Rating
BULGIN LIMITED PXM6012/03S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel	3	1	2	Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer
BULGIN LIMITED PXM6012/22P/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Male Pins	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	22
BULGIN LIMITED PXM6012/22S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	22
BULGIN LIMITED PXM6012/08S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	8
BULGIN LIMITED PXM6012/16S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	16
BULGIN LIMITED PXM6012/03P/ST	Male Pins Plug	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Keyed	Nickel	3	1	2			-40 °C	120 °C			Bulkhead - Rear Side Nut	Brass	Unshielded	Metal			Screw	Nickel	Silver	Brass	11 A 16 A	277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.75
		10	$ 32.18
		25	$ 30.79
		50	$ 29.80
		100	$ 28.81
Newark	Each	10	$ 34.62
		25	$ 32.98
		50	$ 31.34
		100	$ 30.31
		250	$ 28.68
		500	$ 28.06

Description

General part information

PXM6012 Series

3 (2 Power + PE) Position Circular Connector Plug, Male Pins Screw

Documents

Technical documentation and resources

6000 Series Metal Wiring Instr

Datasheet

6000 Series - Ethernet Buccaneer

6000 Series CE Cert

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet
