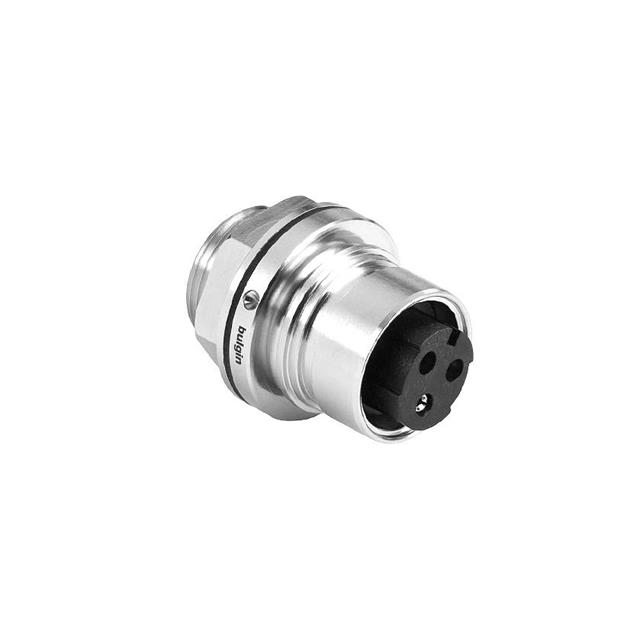

PXM6012/03S/CR

Active

BULGIN LIMITED

6000 SERIES METAL CHASSIS 3 POLE PL

Deep-Dive with AI

Search across all available documentation for this part.

Documents6000 Series - Ethernet Buccaneer 6000 Series CE Cert +2

PXM6012/03S/CR

Active

BULGIN LIMITED

6000 SERIES METAL CHASSIS 3 POLE PL

Deep-Dive with AI

Documents6000 Series - Ethernet Buccaneer 6000 Series CE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6012/03S/CR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Push-Twist
Housing Color	Silver
Includes	Connector, Washer, Nut
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Type	For Female Sockets

PXM6012 Series

Part	Connector Type	Fastening Type	Ingress Protection	Contact Type	Orientation	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Note	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Housing Color	Mounting Feature	Shell Material	Shielding	Primary Material	Includes	Number of Positions	Termination	Contact Finish - Mating	Color	Contact Material	Current Rating (Amps)	Voltage Rating
BULGIN LIMITED PXM6012/03S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel	3	1	2	Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer
BULGIN LIMITED PXM6012/22P/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Male Pins	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	22
BULGIN LIMITED PXM6012/22S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	22
BULGIN LIMITED PXM6012/08S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	8
BULGIN LIMITED PXM6012/16S/CR	Receptacle Housing	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Keyed	Nickel				Contacts Not Included	For Female Sockets	-40 °C	120 °C	Circular	Silver	Bulkhead - Rear Side Nut	Brass	Unshielded	Metal	Connector Nut Washer	16
BULGIN LIMITED PXM6012/03P/ST	Male Pins Plug	Push-Twist	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Keyed	Nickel	3	1	2			-40 °C	120 °C			Bulkhead - Rear Side Nut	Brass	Unshielded	Metal			Screw	Nickel	Silver	Brass	11 A 16 A	277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 29.40
Newark	Each	1	$ 37.99
