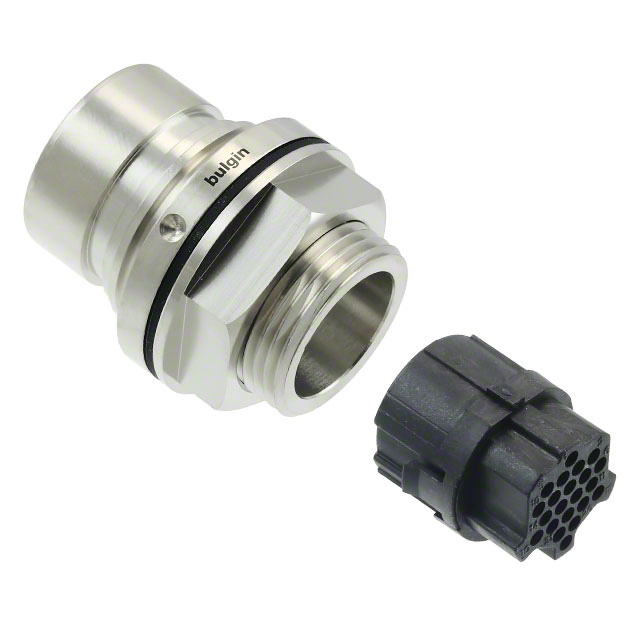

PXM6012/22P/CR

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; SOCKET; MALE; PIN: 22; 2A; 60V; W/O CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

Documents6000 Series - Ethernet Buccaneer 6000 Series Metal Wiring Instr +2

PXM6012/22P/CR

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; SOCKET; MALE; PIN: 22; 2A; 60V; W/O CONTACTS

Deep-Dive with AI

Documents6000 Series - Ethernet Buccaneer 6000 Series Metal Wiring Instr +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6012/22P/CR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Push-Twist
Housing Color	Silver
Includes	Connector, Washer, Nut
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	22
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Type	For Male Pins

buccaneer-6000 Series

Part	Note	Contact Shape	Ingress Protection	Primary Material	Shielding	Connector Type	Mounting Type	Housing Color	Shell Material	Number of Positions	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Features	Orientation	Shell Finish	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Termination	Color	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXM6011/02P/CR/0507	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	2	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXP6011/22P/CR/0910	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	22	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0
BULGIN LIMITED PXP6010/22P/CR/0910	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Plug Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	22	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell Coupling Nut	Keyed		UL94 V-0
BULGIN LIMITED PXP6011/02P/CR/0405	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	2	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0
BULGIN LIMITED PXP6011/16P/CR/0507	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	16	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0
BULGIN LIMITED PXP6011/16S/CR/0507	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	16	For Female Sockets	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0
BULGIN LIMITED PXP6011/02S/CR/0709	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	2	For Female Sockets	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0
BULGIN LIMITED PXP6011/02S/ST			Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	2		-40 °C	120 °C		Push-Twist	UV Resistant	Keyed		UL94 V-0	16 A	Nickel	Brass	Screw	Gray	277 VAC/DC
BULGIN LIMITED PXP6011/03S/ST/0709			Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free			-40 °C	120 °C		Push-Twist	UV Resistant	Keyed		UL94 V-0	16 A	Nickel	Brass	Screw	Gray	277 VAC/DC	0.276 in 0.354 in	7 mm 9 mm	3	1	2
BULGIN LIMITED PXP6011/03P/CR/0709	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Plastic	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed		UL94 V-0									3	1	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.27
		10	$ 29.58
		25	$ 26.82
		50	$ 24.96
		100	$ 23.27
		250	$ 21.29
		500	$ 20.00
TME	N/A	25	$ 28.60
		50	$ 26.89
		100	$ 25.29
