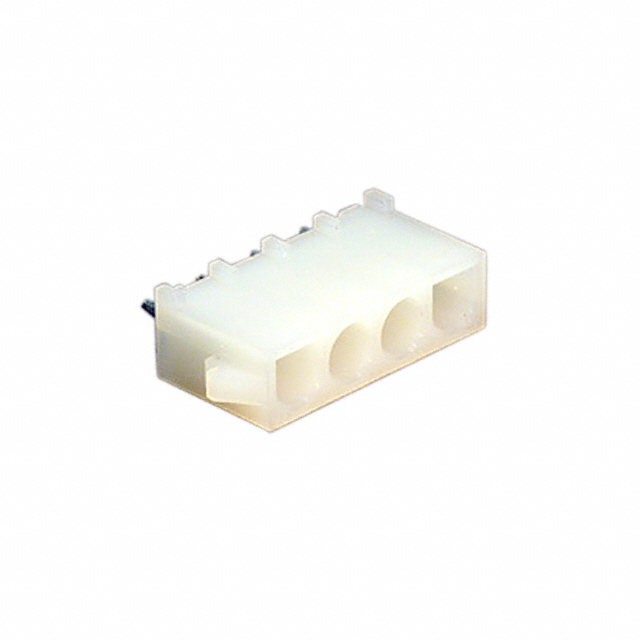

0010844040

Active

Molex

CONN HEADER VERT 4POS 6.35MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010844040

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.5 µm
Contact Finish Thickness - Mating	137.8 µin
Contact Length - Post	0.169 in
Contact Length - Post	4.3 mm
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

001084 Series

Part	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Shape	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Applications	Style	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Post	Number of Rows	Number of Positions	Insulation Color	Insulation Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0010844150	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	15	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844042	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket			UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010845150	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-0	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	15	Natural	Polybutylene Terephthalate (PBT)	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010845040	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin			UL94 V-0	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polybutylene Terephthalate (PBT)	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844040	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin			UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844032	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket			UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1		Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010844090	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	9	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844122	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	12	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010844060	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	2	6	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844062	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	2	6	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58
		10	$ 0.48
		100	$ 0.40
		1080	$ 0.35

Description

General part information

001084 Series

Connector Header Through Hole 4 position 0.250" (6.35mm)
