0010845150

Active

Molex

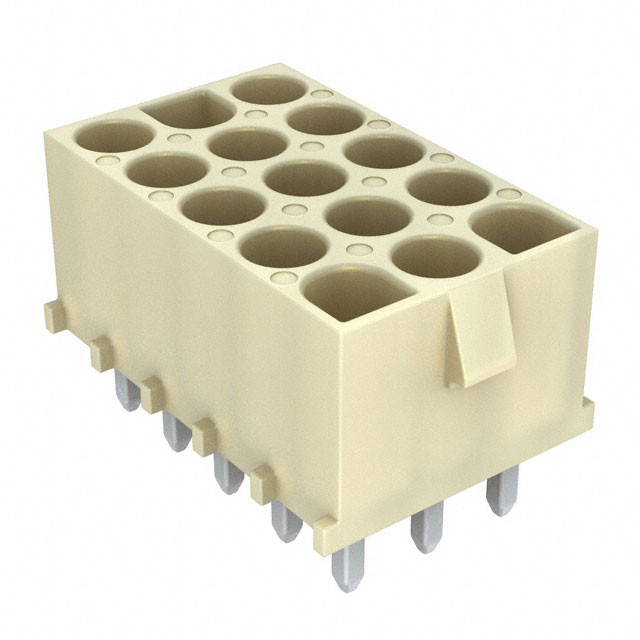

CONN HEADER VERT 15POS 6.35MM

Deep-Dive with AI

Search across all available documentation for this part.

0010845150

Active

Molex

CONN HEADER VERT 15POS 6.35MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010845150

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.5 µm
Contact Finish Thickness - Mating	137.8 µin
Contact Length - Post	0.169 in
Contact Length - Post	4.3 mm
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

001084 Series

Part	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Shape	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Applications	Style	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Post	Number of Rows	Number of Positions	Insulation Color	Insulation Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0010844150	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	15	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844042	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket			UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010845150	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-0	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	15	Natural	Polybutylene Terephthalate (PBT)	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010845040	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin			UL94 V-0	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polybutylene Terephthalate (PBT)	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844040	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin			UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1	4	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844032	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket			UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	1		Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010844090	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	9	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844122	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	3	12	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C
Molex 0010844060	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Male Pin	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	2	6	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin	Shrouded - 4 Wall
Molex 0010844062	Solder	0.169 in	4.3 mm	0.55 in	13.97 mm	Circular	Female Socket	0.25 in	6.35 mm	UL94 V-2	Automotive General Purpose Industrial Telecommunications	Board to Cable/Wire	Locking Ramp	6.35 mm	0.25 in	Header	Tin	2	6	Natural	Polyamide (PA66) Nylon 6/6	All	Through Hole	3.5 µm	137.8 µin		600 V	137.8 Áin	3.5 Ám	Phosphor Bronze	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1920	$ 1.47

Description

General part information

001084 Series

Connector Header Through Hole 15 position 0.250" (6.35mm)
