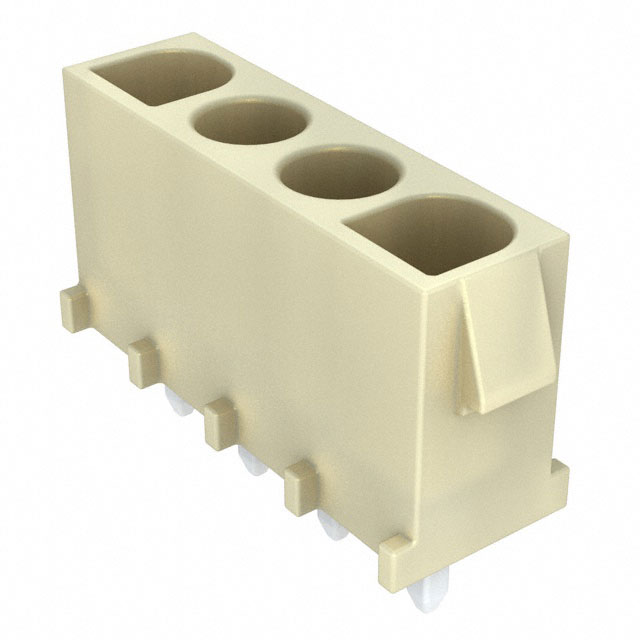

0010845040
ActiveMolex
CONN HEADER VERT 4POS 6.35MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010845040 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3.5 µm |
| Contact Finish Thickness - Mating | 137.8 µin |
| Contact Length - Post | 0.169 in |
| Contact Length - Post | 4.3 mm |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.55 in |
| Insulation Height | 13.97 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 6.35 mm |
| Pitch - Mating | 0.25 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
001084 Series
| Part | Termination | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Shape | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Applications | Style | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Post | Number of Rows | Number of Positions | Insulation Color | Insulation Material | Number of Positions Loaded | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | 0.25 in | 6.35 mm | UL94 V-2 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 3 | 15 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Female Socket | UL94 V-2 | Automotive General Purpose Industrial Telecommunications | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 1 | 4 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | 600 V | 137.8 Áin | 3.5 Ám | Phosphor Bronze | 105 ░C | -55 °C | |||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | 0.25 in | 6.35 mm | UL94 V-0 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 3 | 15 | Natural | Polybutylene Terephthalate (PBT) | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | UL94 V-0 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 1 | 4 | Natural | Polybutylene Terephthalate (PBT) | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | UL94 V-2 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 1 | 4 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Female Socket | UL94 V-2 | Automotive General Purpose Industrial Telecommunications | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 1 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | 600 V | 137.8 Áin | 3.5 Ám | Phosphor Bronze | 105 ░C | -55 °C | ||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | 0.25 in | 6.35 mm | UL94 V-2 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 3 | 9 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Female Socket | 0.25 in | 6.35 mm | UL94 V-2 | Automotive General Purpose Industrial Telecommunications | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 3 | 12 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | 600 V | 137.8 Áin | 3.5 Ám | Phosphor Bronze | 105 ░C | -55 °C | |
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Male Pin | 0.25 in | 6.35 mm | UL94 V-2 | Automotive General Purpose Industrial | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 2 | 6 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | Shrouded - 4 Wall | ||||||
Molex | Solder | 0.169 in | 4.3 mm | 0.55 in | 13.97 mm | Circular | Female Socket | 0.25 in | 6.35 mm | UL94 V-2 | Automotive General Purpose Industrial Telecommunications | Board to Cable/Wire | Locking Ramp | 6.35 mm | 0.25 in | Header | Tin | 2 | 6 | Natural | Polyamide (PA66) Nylon 6/6 | All | Through Hole | 3.5 µm | 137.8 µin | 600 V | 137.8 Áin | 3.5 Ám | Phosphor Bronze | 105 ░C | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.37 | |||
| 1080 | $ 0.33 | |||
Description
General part information
001084 Series
Connector Header Through Hole 4 position 0.250" (6.35mm)
Documents
Technical documentation and resources
No documents available
