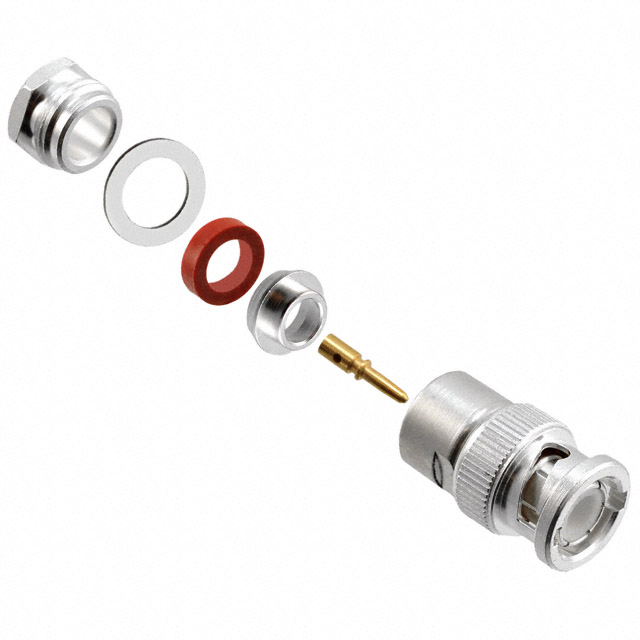

031-3302

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-3302

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-3302

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Insulator, Braid Clamp, Clamp, Washer, Contact, Gasket, Connector
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

031-33 Series

Part	Body Material	Includes	Mounting Type	Dielectric Material	Number of Ports	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Center Contact Material	Cable Group	Connector Style	Connector Type	Mating Cycles	Insertion Loss	Body Finish	Housing Color	Voltage Rating	Contact Termination	Impedance	Frequency - Max [Max]	Fastening Type	Ingress Protection	Impedance	Mounting Feature
Amphenol RF 031-336-RFX	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	1	Crimp	-65 ░C	165 °C	Gold	Brass	1501A 8281 9100 Belden 1426A RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock
Amphenol RF 031-33546-8	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Beryllium Copper		BNC Triaxial	Male Pin Plug	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-3301	Brass	1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	BNC	Male Pin Plug	500	0.2 dB	Silver	Silver	500 V	Solder	50 Ohms	4 GHz	Bayonet Lock	Weatherproof
Amphenol RF 031-335	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Crimp	-65 ░C	165 °C	Gold	Phosphor Bronze Zinc Die Cast	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock
Amphenol RF 031-33224-13
Amphenol RF 031-3302	Brass	Braid Clamp Clamp Connector Contact Gasket Insulator Washer	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Solder	50 Ohms	4 GHz	Bayonet Lock	Weatherproof
Amphenol RF 031-3376	Brass	1 Connector 1 Lockwasher 1 Nut		Polytetrafluoroethylene (PTFE)	1	Solder	-65 ░C	165 °C	Gold	Phosphor Bronze		BNC	Female Socket Jack	500	0.2 dB	Silver	Silver	500 V	Solder Cup	50 Ohms	4 GHz	Bayonet Lock			Bulkhead - Rear Side Nut
Amphenol RF 031-33546-17	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut 1 Spacer 2 Braid Clamps 2 Gaskets	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass		BNC Triaxial	Female Socket Jack	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-33485-24	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Beryllium Copper		BNC Triaxial	Male Pin Plug	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-336	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Crimp	-65 ░C	165 °C	Gold	Phosphor Bronze Zinc Die Cast	1501A 8281 9100 Belden 1426A RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.95
		10	$ 49.51
		25	$ 47.60
		50	$ 46.02
		100	$ 43.48

Description

General part information

031-33 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
