031-336
Amphenol RF

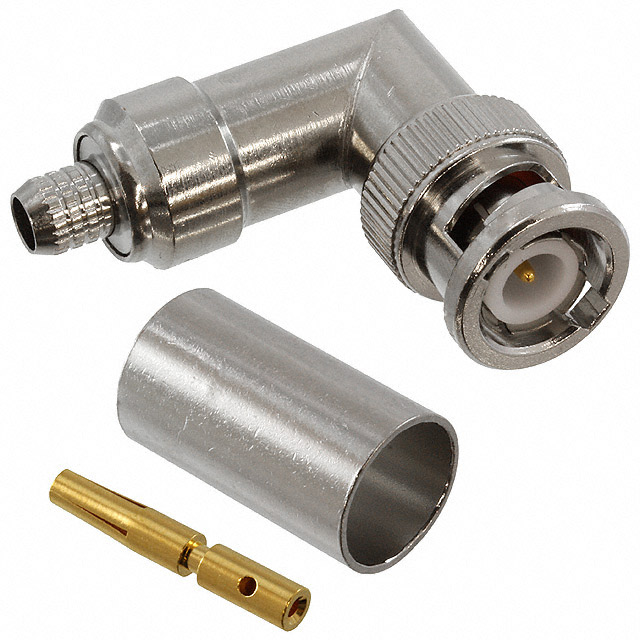

CONN BNC PLUG R/A 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
031-336
Amphenol RF
CONN BNC PLUG R/A 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-336 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1426A, RG-59, 9100, 8281, 1501A |
| Center Contact Material | Zinc Die Cast, Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
031-33 Series
| Part | Body Material | Includes | Mounting Type | Dielectric Material | Number of Ports | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Center Contact Material | Cable Group | Connector Style | Connector Type | Mating Cycles | Insertion Loss | Body Finish | Housing Color | Voltage Rating | Contact Termination | Impedance | Frequency - Max [Max] | Fastening Type | Ingress Protection | Impedance | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | Polyoxymethylene (POM) Acetal | 1 | Crimp | -65 ░C | 165 °C | Gold | Brass | 1501A 8281 9100 Belden 1426A RG-59 | BNC | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | 500 V | Crimp | 50 Ohms | 4 GHz | Bayonet Lock | |||
Amphenol RF | Brass | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | 1 | Clamp | -65 ░C | 165 °C | Gold | Beryllium Copper | BNC Triaxial | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | Solder | 500 MHz | Bayonet Lock | Weatherproof | Non-Constant | ||||
Amphenol RF | Brass | 1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 1 | Clamp | -65 ░C | 165 °C | Gold | Brass | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | BNC | Male Pin Plug | 500 | 0.2 dB | Silver | Silver | 500 V | Solder | 50 Ohms | 4 GHz | Bayonet Lock | Weatherproof | ||
Amphenol RF | Brass | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | 1 | Crimp | -65 ░C | 165 °C | Gold | Phosphor Bronze Zinc Die Cast | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | BNC | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | 500 V | Crimp | 50 Ohms | 4 GHz | Bayonet Lock | |||
Amphenol RF | |||||||||||||||||||||||||
Amphenol RF | Brass | Braid Clamp Clamp Connector Contact Gasket Insulator Washer | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 1 | Clamp | -65 ░C | 165 °C | Gold | Brass | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | BNC | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | 500 V | Solder | 50 Ohms | 4 GHz | Bayonet Lock | Weatherproof | ||
Amphenol RF | Brass | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | 1 | Solder | -65 ░C | 165 °C | Gold | Phosphor Bronze | BNC | Female Socket Jack | 500 | 0.2 dB | Silver | Silver | 500 V | Solder Cup | 50 Ohms | 4 GHz | Bayonet Lock | Bulkhead - Rear Side Nut | ||||
Amphenol RF | Brass | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut 1 Spacer 2 Braid Clamps 2 Gaskets | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 1 | Clamp | -65 ░C | 165 °C | Gold | Brass | BNC Triaxial | Female Socket Jack | 500 | 0.2 dB | Nickel | Silver | Solder | 500 MHz | Bayonet Lock | Weatherproof | Non-Constant | ||||
Amphenol RF | Brass | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | 1 | Clamp | -65 ░C | 165 °C | Gold | Beryllium Copper | BNC Triaxial | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | Solder | 500 MHz | Bayonet Lock | Weatherproof | Non-Constant | ||||
Amphenol RF | Brass | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | 1 | Crimp | -65 ░C | 165 °C | Gold | Phosphor Bronze Zinc Die Cast | 1501A 8281 9100 Belden 1426A RG-59 | BNC | Male Pin Plug | 500 | 0.2 dB | Nickel | Silver | 500 V | Crimp | 50 Ohms | 4 GHz | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.37 | |
| 10 | $ 23.97 | |||
| 25 | $ 22.93 | |||
| 50 | $ 22.19 | |||
| 100 | $ 21.45 | |||
| 300 | $ 20.27 | |||
| 500 | $ 19.68 | |||
Description
General part information
031-33 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
