031-3301

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-3301

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-3301

Body Finish	Silver
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

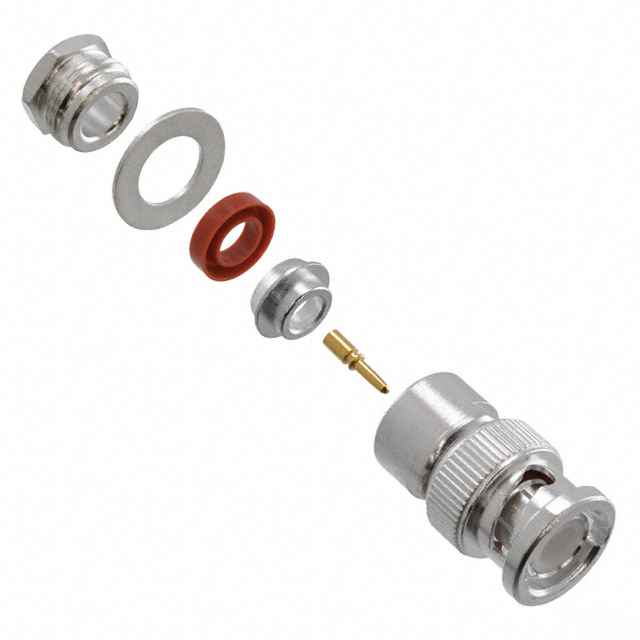

Includes	Clamp, 1 Contact, 1 Connector, 1 Gasket, 1 Washer, 1 Clamp, 1 Braid
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

031-33 Series

Part	Body Material	Includes	Mounting Type	Dielectric Material	Number of Ports	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Center Contact Material	Cable Group	Connector Style	Connector Type	Mating Cycles	Insertion Loss	Body Finish	Housing Color	Voltage Rating	Contact Termination	Impedance	Frequency - Max [Max]	Fastening Type	Ingress Protection	Impedance	Mounting Feature
Amphenol RF 031-336-RFX	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	1	Crimp	-65 ░C	165 °C	Gold	Brass	1501A 8281 9100 Belden 1426A RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock
Amphenol RF 031-33546-8	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Beryllium Copper		BNC Triaxial	Male Pin Plug	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-3301	Brass	1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	BNC	Male Pin Plug	500	0.2 dB	Silver	Silver	500 V	Solder	50 Ohms	4 GHz	Bayonet Lock	Weatherproof
Amphenol RF 031-335	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Crimp	-65 ░C	165 °C	Gold	Phosphor Bronze Zinc Die Cast	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock
Amphenol RF 031-33224-13
Amphenol RF 031-3302	Brass	Braid Clamp Clamp Connector Contact Gasket Insulator Washer	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Solder	50 Ohms	4 GHz	Bayonet Lock	Weatherproof
Amphenol RF 031-3376	Brass	1 Connector 1 Lockwasher 1 Nut		Polytetrafluoroethylene (PTFE)	1	Solder	-65 ░C	165 °C	Gold	Phosphor Bronze		BNC	Female Socket Jack	500	0.2 dB	Silver	Silver	500 V	Solder Cup	50 Ohms	4 GHz	Bayonet Lock			Bulkhead - Rear Side Nut
Amphenol RF 031-33546-17	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut 1 Spacer 2 Braid Clamps 2 Gaskets	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Brass		BNC Triaxial	Female Socket Jack	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-33485-24	Brass	1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Washer 2 Braid Clamps	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Clamp	-65 ░C	165 °C	Gold	Beryllium Copper		BNC Triaxial	Male Pin Plug	500	0.2 dB	Nickel	Silver		Solder		500 MHz	Bayonet Lock	Weatherproof	Non-Constant
Amphenol RF 031-336	Brass	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	1	Crimp	-65 ░C	165 °C	Gold	Phosphor Bronze Zinc Die Cast	1501A 8281 9100 Belden 1426A RG-59	BNC	Male Pin Plug	500	0.2 dB	Nickel	Silver	500 V	Crimp	50 Ohms	4 GHz	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.18
		10	$ 21.17
		25	$ 20.26
		50	$ 19.60
		100	$ 18.95
		300	$ 17.91
		500	$ 17.38

Description

General part information

031-33 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
