317-028-541-601

Active

EDAC Inc.

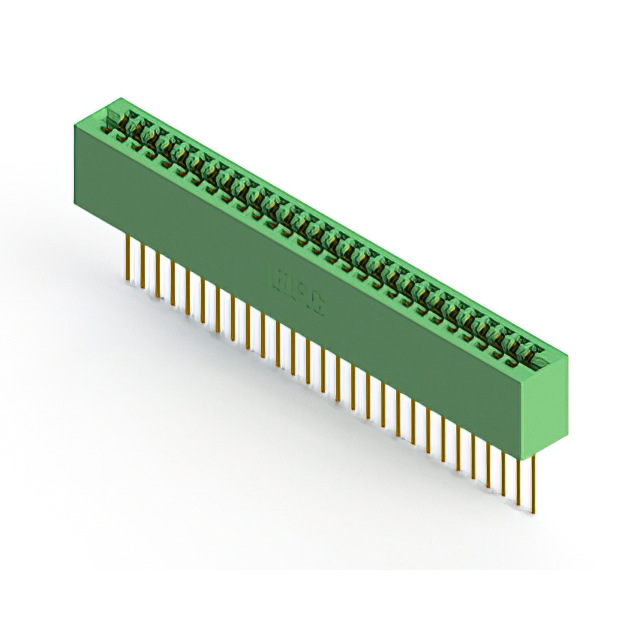

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

317-028-541-601

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-028-541-601

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	56
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap

317-028 Series

Part	Material - Insulation	Number of Rows	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Number of Positions	Termination	Read Out	Pitch [x]	Pitch [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features
EDAC Inc. 317-028-542-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-603	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-607	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-542-878	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole	Card Guides
EDAC Inc. 317-028-541-601	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge				Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-542-807	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-807	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-608	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-802	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge				Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 72.22
Newark	Each	1	$ 86.68
		100	$ 75.84
		250	$ 67.42
		500	$ 60.67
		1000	$ 46.34

Description

General part information

317-028 Series

56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
