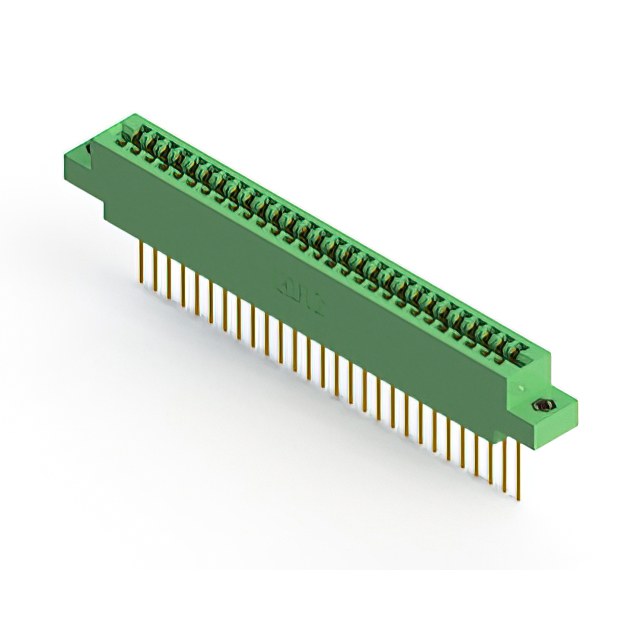

317-028-541-607
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
317-028-541-607
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 317-028-541-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
317-028 Series
| Part | Material - Insulation | Number of Rows | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Number of Positions/Bay/Row [custom] | Contact Type | Gender | Number of Positions | Termination | Read Out | Pitch [x] | Pitch [x] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | 28 | Cantilever | Female | 56 | Wire Wrap | Single | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Copper Alloy | 28 | Cantilever | Female | 56 | Wire Wrap | Single | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Card Guides | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | Copper Alloy | 28 | Cantilever | Female | 56 | Wire Wrap | Single | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 28 | Cantilever | Female | 56 | Wire Wrap | Single | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | Copper Alloy | 14 | Cantilever | Female | 28 | Wire Wrap | Dual | 0.156 in | 3.96 mm | Green | 125 °C | -65 ░C | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 74.66 | |
Description
General part information
317-028 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
