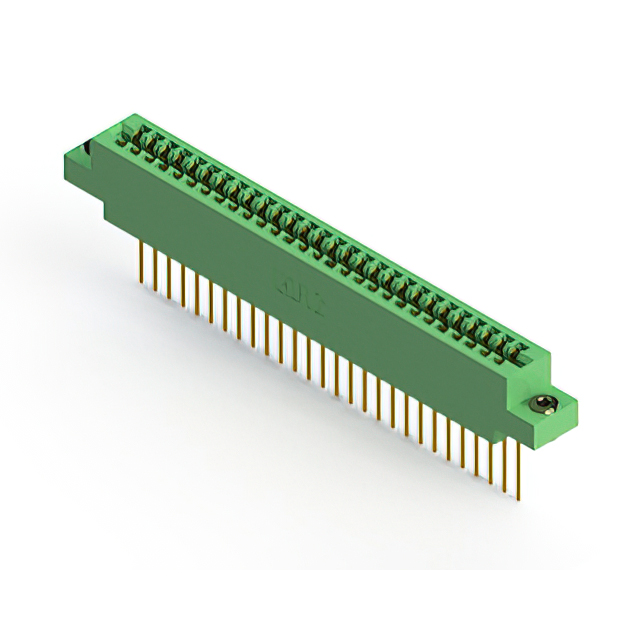

317-028-541-603

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

317-028-541-603

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-028-541-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	56
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap

317-028 Series

Part	Material - Insulation	Number of Rows	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Number of Positions	Termination	Read Out	Pitch [x]	Pitch [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features
EDAC Inc. 317-028-542-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-603	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-607	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-542-878	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole	Card Guides
EDAC Inc. 317-028-541-601	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge				Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-542-807	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-807	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-541-608	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Copper Alloy	28	Cantilever	Female	56	Wire Wrap	Single	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 317-028-540-802	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge				Copper Alloy	14	Cantilever	Female	28	Wire Wrap	Dual	0.156 in	3.96 mm	Green	125 °C	-65 ░C	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 74.66

Description

General part information

317-028 Series

56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
