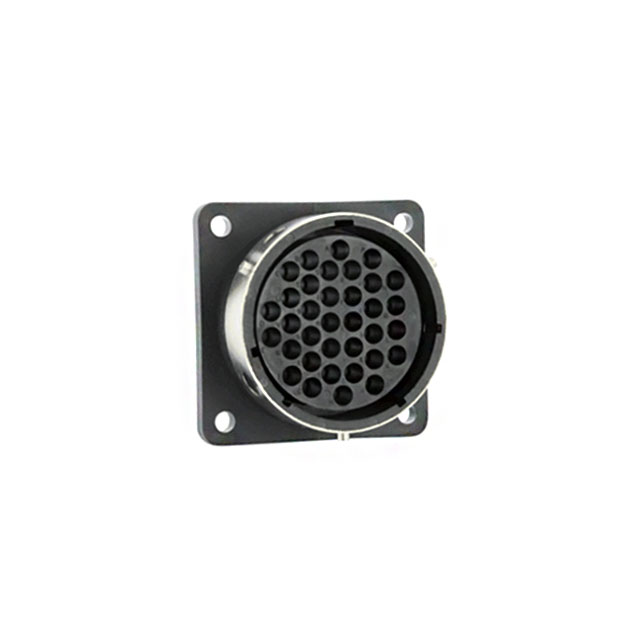

UTG022-35S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 35POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG022-35S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	22
Shielding	Unshielded
Type	For Female Sockets

UTG02 Series

Part	Orientation	Note	Material Flammability Rating	Contact Shape	Shell Size - Insert	Mounting Feature	Type	Housing Color	Shielding	Connector Type	Insert Material	Fastening Type	Number of Positions	Number of Positions [custom]	Contact Size	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Contact Size
Souriau-Sunbank by Eaton UTG0247S	N	Contacts Not Included	UL94 V-0	Circular	24-7	Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	8 9	PE	8	16	-55 °C	125 °C	Crimp
Souriau-Sunbank by Eaton UTG020-28S	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20
Souriau-Sunbank by Eaton UTG020-28P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20
Souriau-Sunbank by Eaton UTG02448SH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	48				-55 °C	125 °C	Crimp	16	48	24	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG022-35P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22
Souriau-Sunbank by Eaton UTG022-35S	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22
Souriau-Sunbank by Eaton UTG02028PH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG02448P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	48				-55 °C	125 °C	Crimp	16	48	24
Souriau-Sunbank by Eaton UTG02411P	N	Contacts Not Included	UL94 V-0	Circular	24-11	Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	11				-55 °C	125 °C	Crimp					16 (7) 8 (4)
Souriau-Sunbank by Eaton UTG022-35PH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22	IP65 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.73
		10	$ 16.23
		25	$ 15.38
		50	$ 15.16
		100	$ 13.38
		250	$ 12.49
		500	$ 12.22

Description

General part information

UTG02 Series

35 Position Circular Connector Receptacle Housing Panel Mount
