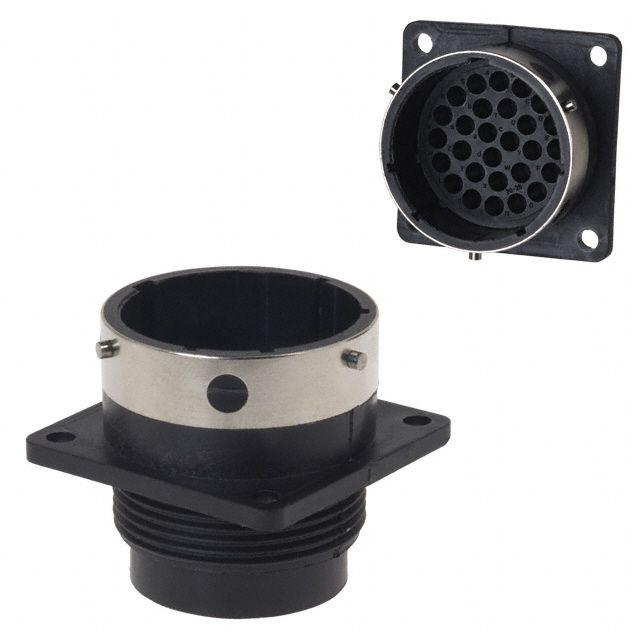

UTG020-28P
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSNG MALE 28POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTG020-28P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black, Silver |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 28 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 28 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Unshielded |
| Type | For Male Pins |
UTG02 Series
| Part | Orientation | Note | Material Flammability Rating | Contact Shape | Shell Size - Insert | Mounting Feature | Type | Housing Color | Shielding | Connector Type | Insert Material | Fastening Type | Number of Positions | Number of Positions [custom] | Contact Size | Contact Size | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Size | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Ingress Protection | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | 24-7 | Flange | For Female Sockets | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 8 9 | PE | 8 | 16 | -55 °C | 125 °C | Crimp | |||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Female Sockets | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 28 | -55 °C | 125 °C | Crimp | 16 | 28 | 20 | ||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 28 | -55 °C | 125 °C | Crimp | 16 | 28 | 20 | ||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Female Sockets | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 48 | -55 °C | 125 °C | Crimp | 16 | 48 | 24 | IP65 - Dust Tight Water Resistant | |||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 35 | -55 °C | 125 °C | Crimp | 16 | 35 | 22 | ||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Female Sockets | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 35 | -55 °C | 125 °C | Crimp | 16 | 35 | 22 | ||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 28 | -55 °C | 125 °C | Crimp | 16 | 28 | 20 | IP65 - Dust Tight Water Resistant | |||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 48 | -55 °C | 125 °C | Crimp | 16 | 48 | 24 | ||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | 24-11 | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 11 | -55 °C | 125 °C | Crimp | 16 (7) 8 (4) | |||||||
Souriau-Sunbank by Eaton | N | Contacts Not Included | UL94 V-0 | Circular | Flange | For Male Pins | Black Silver | Unshielded | Receptacle Housing | Thermoplastic Glass Filled | Bayonet Lock | 35 | -55 °C | 125 °C | Crimp | 16 | 35 | 22 | IP65 - Dust Tight Water Resistant |
