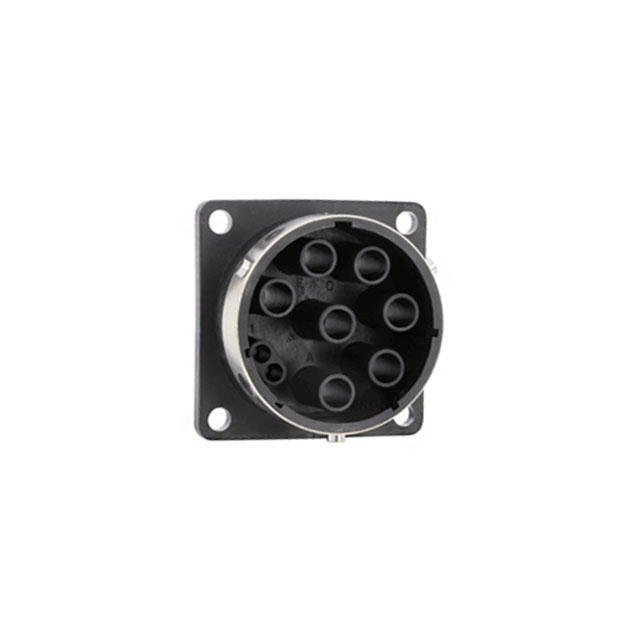

UTG0247S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 9POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG0247S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 9POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG0247S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert	24-7
Shielding	Unshielded
Type	For Female Sockets

UTG02 Series

Part	Orientation	Note	Material Flammability Rating	Contact Shape	Shell Size - Insert	Mounting Feature	Type	Housing Color	Shielding	Connector Type	Insert Material	Fastening Type	Number of Positions	Number of Positions [custom]	Contact Size	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Contact Size
Souriau-Sunbank by Eaton UTG0247S	N	Contacts Not Included	UL94 V-0	Circular	24-7	Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	8 9	PE	8	16	-55 °C	125 °C	Crimp
Souriau-Sunbank by Eaton UTG020-28S	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20
Souriau-Sunbank by Eaton UTG020-28P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20
Souriau-Sunbank by Eaton UTG02448SH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	48				-55 °C	125 °C	Crimp	16	48	24	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG022-35P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22
Souriau-Sunbank by Eaton UTG022-35S	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Female Sockets	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22
Souriau-Sunbank by Eaton UTG02028PH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	28				-55 °C	125 °C	Crimp	16	28	20	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG02448P	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	48				-55 °C	125 °C	Crimp	16	48	24
Souriau-Sunbank by Eaton UTG02411P	N	Contacts Not Included	UL94 V-0	Circular	24-11	Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	11				-55 °C	125 °C	Crimp					16 (7) 8 (4)
Souriau-Sunbank by Eaton UTG022-35PH	N	Contacts Not Included	UL94 V-0	Circular		Flange	For Male Pins	Black Silver	Unshielded	Receptacle Housing	Thermoplastic Glass Filled	Bayonet Lock	35				-55 °C	125 °C	Crimp	16	35	22	IP65 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.11

Description

General part information

UTG02 Series

9 (8 + PE) Position Circular Connector Receptacle Housing Panel Mount
