Kyocera AVX

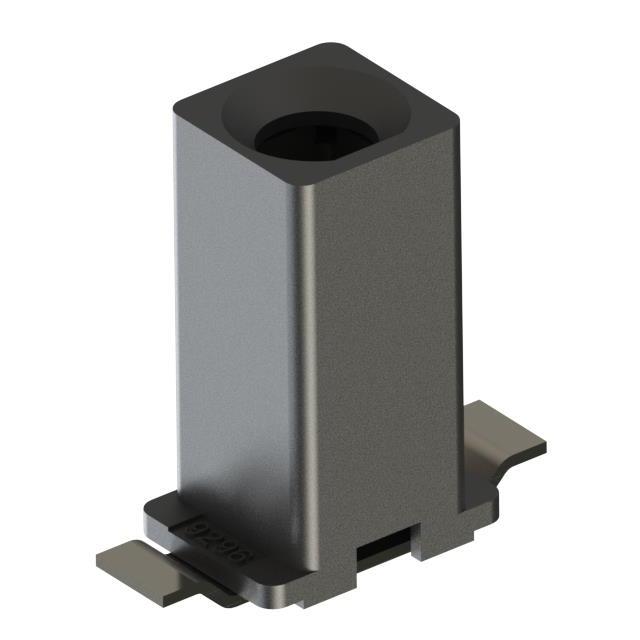

CONN WIR POKE-IN 1P 18-26AWG SMD

Search across all available documentation for this part.

Active

Kyocera AVX

CONN WIR POKE-IN 1P 18-26AWG SMD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Cable Pitch	Cable Pitch	Board-Side Pitch	Board-Side Pitch	Contact Finish	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Cable Termination	Number of Rows	Number of Positions Loaded	Mounting Type	Number of Positions	Cable Pitch [x]	Cable Pitch [x]	Features
Kyocera AVX 009296005402906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires	24 AWG	17.5 AWG	Poke-In	1	All	Surface Mount
Kyocera AVX 009296003553906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires	26 AWG	17.5 AWG	Poke-In	1	All	Surface Mount
Kyocera AVX 009296001603906	White					Tin	Individual Wires	22 AWG	17.5 AWG	Poke-In	1	All	Surface Mount	1
Kyocera AVX 009296004553906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires	26 AWG	17.5 AWG	Poke-In	1	All	Surface Mount	4
Kyocera AVX 009296004202306	Blue			0.118 "	3 mm	Tin	Individual Wires	26 AWG	20 AWG	Poke-In	1	All	Surface Mount Right Angle	4	0.118 in	3 mm	Closed End
Kyocera AVX 009296006553906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires	26 AWG	17.5 AWG	Poke-In	1	All	Surface Mount	6
Kyocera AVX 009296001202906	White					Tin	Individual Wires	26 AWG	20 AWG	Poke-In	1	All	Surface Mount Right Angle	1			Closed End
Kyocera AVX 009296005212906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires			Poke-In	1	All	Surface Mount				Closed End
Kyocera AVX 009296005553906	White	0.157 in	4 mm	0.157 in	4 mm	Tin	Individual Wires	26 AWG	17.5 AWG	Poke-In	1	All	Surface Mount
Kyocera AVX 009296001503806						Tin	Individual Wires	26 AWG	17.5 AWG	Poke-In	1	All	Surface Mount Through Board	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1600	$ 0.36

General part information

1 Position Individual Wires Connector Poke-In 18-26 AWG Surface Mount, Through Board
