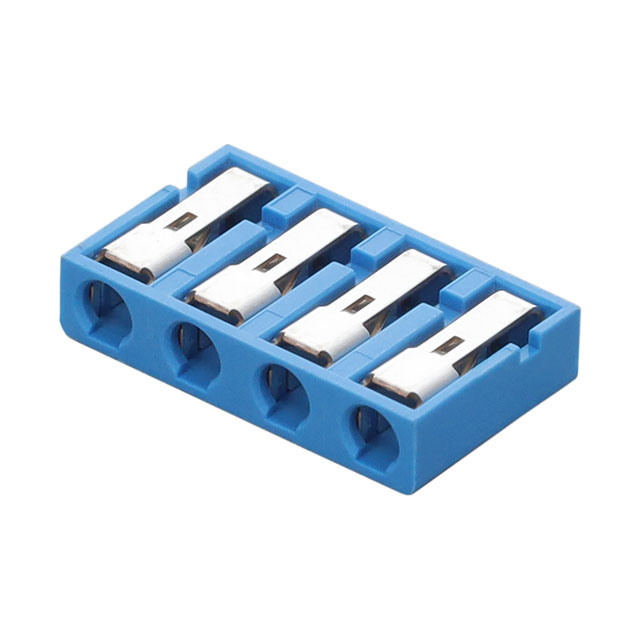

009296004202306
ActiveKyocera AVX
CONN WIRE POKE-IN 4POS SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009296004202306
ActiveKyocera AVX
CONN WIRE POKE-IN 4POS SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 009296004202306 |
|---|---|
| Board-Side Pitch | 3 mm |
| Board-Side Pitch | 0.118 " |
| Cable Pitch [x] | 0.118 in |
| Cable Pitch [x] | 3 mm |
| Cable Termination | Poke-In |
| Color | Blue |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Closed End |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.92 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.92 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| Tape & Reel (TR) | 2000 | $ 0.39 | ||
| 4000 | $ 0.36 | |||
| 6000 | $ 0.35 | |||
| 10000 | $ 0.33 | |||
| 14000 | $ 0.32 | |||
| 20000 | $ 0.31 | |||
Description
General part information
009296 Series
4 Position Individual Wires Connector Blue Poke-In 20-26 AWG Surface Mount, Right Angle
