009296006553906
ActiveKyocera AVX

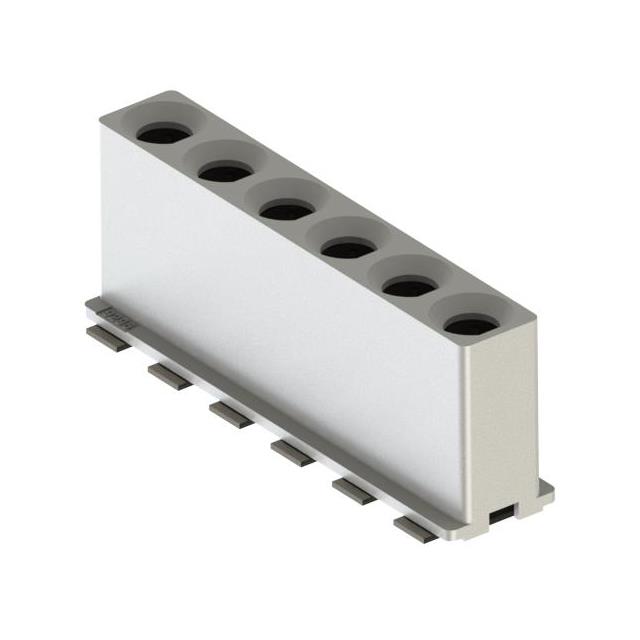

CONN WIR POKE-IN 6P 18-26AWG SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009296006553906
ActiveKyocera AVX
CONN WIR POKE-IN 6P 18-26AWG SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 009296006553906 |
|---|---|
| Board-Side Pitch | 0.157 in |
| Board-Side Pitch | 4 mm |
| Cable Pitch | 0.157 in |
| Cable Pitch | 4 mm |
| Cable Termination | Poke-In |
| Color | White |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.84 | |
| 10 | $ 1.60 | |||
| 100 | $ 1.43 | |||
| Digi-Reel® | 1 | $ 1.84 | ||
| 10 | $ 1.60 | |||
| 100 | $ 1.43 | |||
| Tape & Reel (TR) | 400 | $ 1.29 | ||
| 800 | $ 1.16 | |||
| 1200 | $ 1.02 | |||
| 2000 | $ 0.99 | |||
| 2800 | $ 0.95 | |||
| 10000 | $ 0.88 | |||
Description
General part information
009296 Series
6 Position Individual Wires Connector White Poke-In 18-26 AWG Surface Mount
