09110012651

Active

HARTING Technology Group

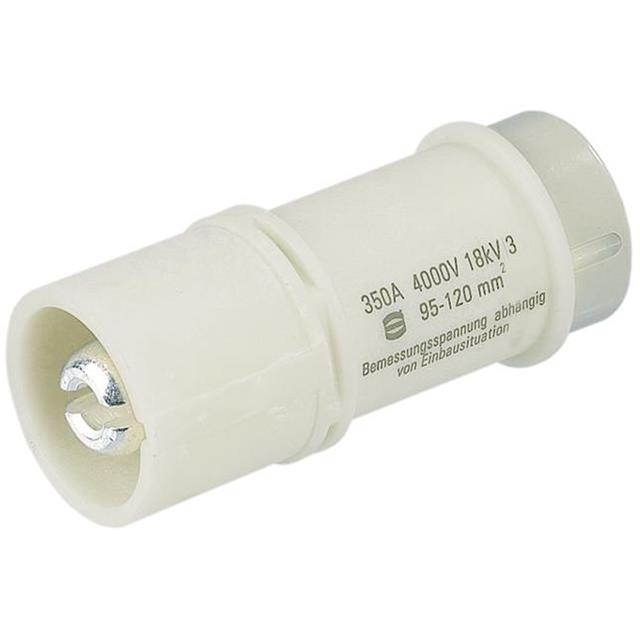

HEAVY DUTY CONNECTOR, HAN HC MODULAR SERIES, INSERT, 1 CONTACT, PLUG, SCREW PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN HC MODULAR SERIES, INSERT, 1 CONTACT, PLUG, SCREW PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09110012651

Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	350 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw

Part	Contact Material	Voltage Rating	Contact Finish	Gender	Current Rating (Amps)	Connector Type	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions
HARTING Technology Group 09110012755	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012772	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012670	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012671	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012672	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012651	Copper Alloy		Silver	Male	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012751	Copper Alloy		Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012771	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012770	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012750	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module 1 Position Screw
