09110012672
ActiveHARTING Technology Group

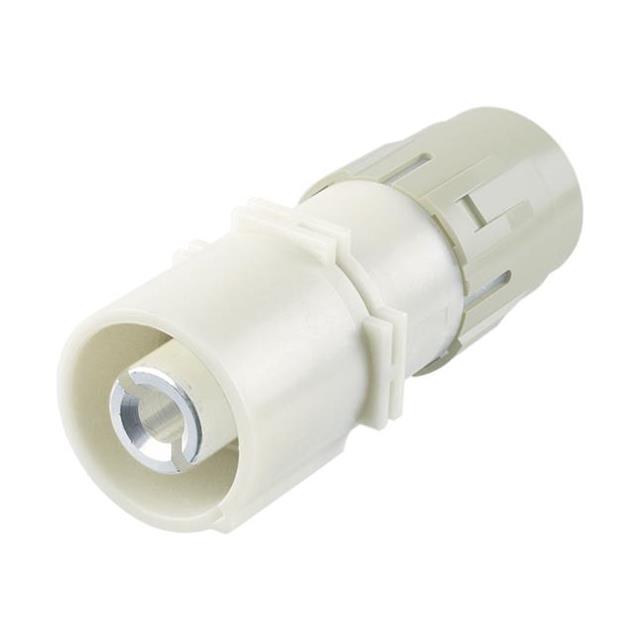

HAN 1HC-650A-MALE-AX 150-180 MM ROHS COMPLIANT: NA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09110012672
ActiveHARTING Technology Group
HAN 1HC-650A-MALE-AX 150-180 MM ROHS COMPLIANT: NA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09110012672 |
|---|---|
| Connector Type | Module |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 650 A |
| Gender | Male |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Screw |
| Voltage Rating | 4000 V |
09110012 Series
| Part | Contact Material | Voltage Rating | Contact Finish | Gender | Current Rating (Amps) | Connector Type | Housing Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Female | 350 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Female | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Male | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Male | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Male | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | Silver | Male | 350 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 | |
HARTING Technology Group | Copper Alloy | Silver | Female | 350 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 | |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Female | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Female | 650 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
HARTING Technology Group | Copper Alloy | 4000 V | Silver | Female | 350 A | Module | Polyamide (PA) Nylon | UL94 V-0 | 125 °C | -40 °C | Screw | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09110012 Series
Male Module 1 Position Screw
