09110012755

Active

HARTING Technology Group

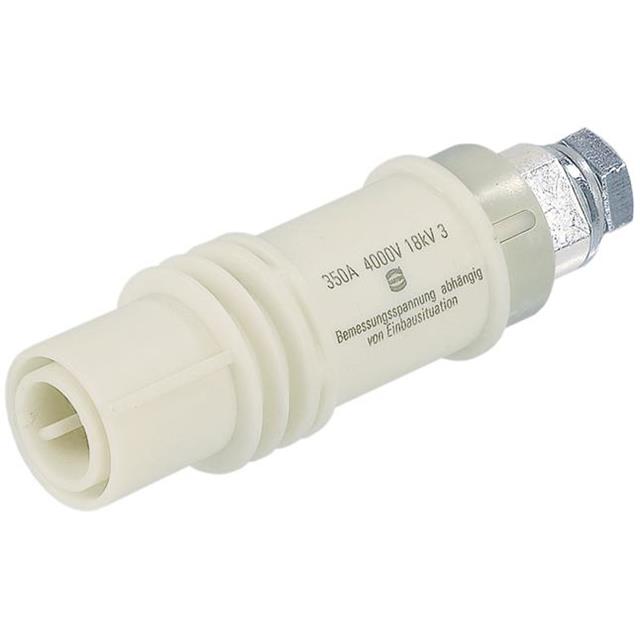

MODULE FEMALE 1POS SCREW

Search across all available documentation for this part.

Active

HARTING Technology Group

MODULE FEMALE 1POS SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	09110012755

Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	350 A
Gender	Female
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw
Voltage Rating	4000 V

Part	Contact Material	Voltage Rating	Contact Finish	Gender	Current Rating (Amps)	Connector Type	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions
HARTING Technology Group 09110012755	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012772	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012670	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012671	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012672	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012651	Copper Alloy		Silver	Male	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012751	Copper Alloy		Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012771	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012770	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012750	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.13

General part information

Female Module 1 Position Screw
