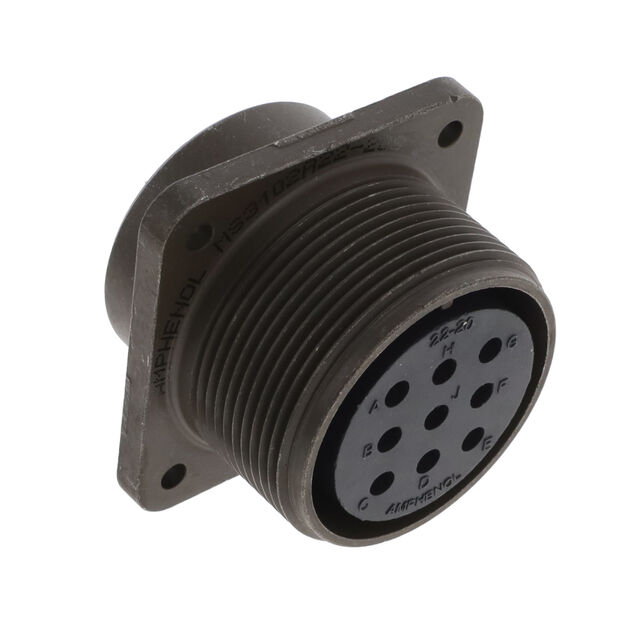

MS3102A22-20S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102A22-20S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A22-20S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	20
Shielding	Unshielded

MS3102A22 Series

Part	Insert Material	Primary Material	Number of Positions	Shielding	Color	Applications	Ingress Protection	Grade	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Material	Mounting Feature	Orientation	Contact Finish - Mating	Qualification	Voltage Rating	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Industrial Operations MS3102A22-20S	Neoprene	Metal	9	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy	22	20	13 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015
Amphenol Industrial Operations MS3102A22-1P	Neoprene	Metal	2	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			46 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Male Pins Receptacle	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	900 VAC 1250 VDC	22-1
Amphenol Industrial Operations MS3102A22-22S	Neoprene	Metal	4	Unshielded	Olive Drab	Marine Military			Copper Alloy	22	22		Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-5015			31.75 mm	1.25 in
Amphenol Industrial Operations MS3102A22-5P	Neoprene	Metal	6	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			13 A 23 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Male Pins Receptacle	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	900 VAC 1250 VDC	22-5
Amphenol Industrial Operations MS3102A22-21S-RES
Amphenol Industrial Operations MS3102A22-10S	Neoprene	Metal	4	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			13 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	1250 VAC 1750 VDC
Amphenol Industrial Operations MS3102A22-17P
Amphenol Industrial Operations MS3102A22-1S-RES
Amphenol Industrial Operations MS3102A22-2PW
Amphenol Industrial Operations MS3102A22-27S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.62
		10	$ 17.87
		25	$ 16.93
		50	$ 16.69
		100	$ 14.73
		250	$ 13.74
		500	$ 13.45

Description

General part information

MS3102A22 Series

9 Position Circular Connector Receptacle, Female Sockets Solder Cup
