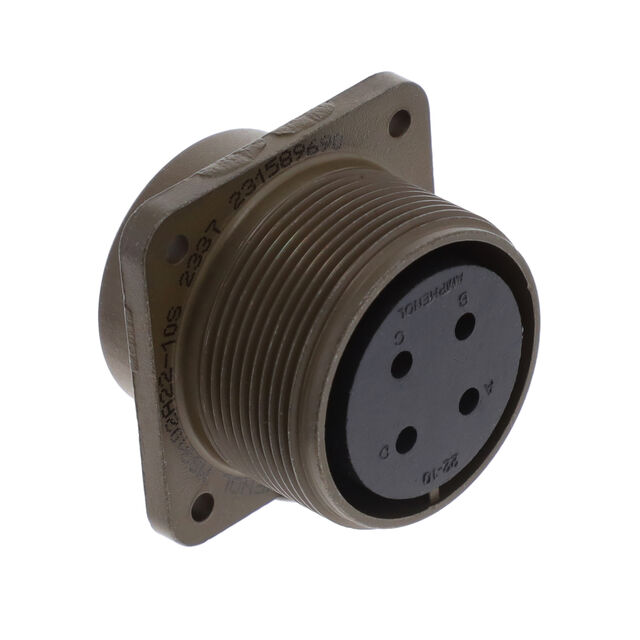

MS3102A22-10S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A22-10S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shielding	Unshielded
Voltage Rating	1250 VAC, 1750 VDC

MS3102A22 Series

Part	Insert Material	Primary Material	Number of Positions	Shielding	Color	Applications	Ingress Protection	Grade	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Material	Mounting Feature	Orientation	Contact Finish - Mating	Qualification	Voltage Rating	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Industrial Operations MS3102A22-20S	Neoprene	Metal	9	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy	22	20	13 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015
Amphenol Industrial Operations MS3102A22-1P	Neoprene	Metal	2	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			46 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Male Pins Receptacle	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	900 VAC 1250 VDC	22-1
Amphenol Industrial Operations MS3102A22-22S	Neoprene	Metal	4	Unshielded	Olive Drab	Marine Military			Copper Alloy	22	22		Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-5015			31.75 mm	1.25 in
Amphenol Industrial Operations MS3102A22-5P	Neoprene	Metal	6	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			13 A 23 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Male Pins Receptacle	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	900 VAC 1250 VDC	22-5
Amphenol Industrial Operations MS3102A22-21S-RES
Amphenol Industrial Operations MS3102A22-10S	Neoprene	Metal	4	Unshielded	Olive Drab	Marine Military	Environment Resistant	Military	Copper Alloy			13 A	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Receptacle Female Sockets	Aluminum Alloy	Flange	N	Silver	MIL-DTL-5015	1250 VAC 1750 VDC
Amphenol Industrial Operations MS3102A22-17P
Amphenol Industrial Operations MS3102A22-1S-RES
Amphenol Industrial Operations MS3102A22-2PW
Amphenol Industrial Operations MS3102A22-27S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.25
		10	$ 19.49
		25	$ 18.65
		50	$ 18.04
		100	$ 17.44
		250	$ 16.48
		500	$ 16.00

Description

General part information

MS3102A22 Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
