0026013115

Active

Molex

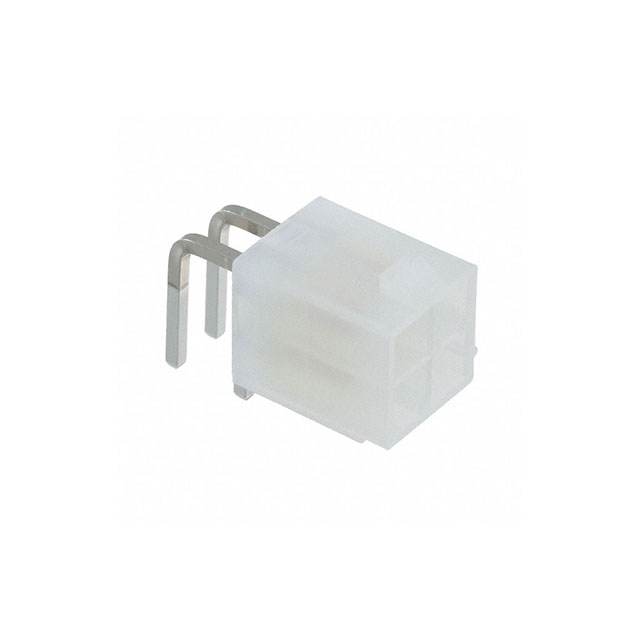

CONN HEADER R/A 4POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Color Variation Spec Tin Whisker Formation Change 27/Jul/2011 +2

0026013115

Active

Molex

CONN HEADER R/A 4POS 4.2MM

Deep-Dive with AI

DocumentsMini-Fit Jr Color Variation Spec Tin Whisker Formation Change 27/Jul/2011 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026013115

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

002601 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Number of Rows	Shrouding	Insulation Material	Material Flammability Rating	Termination	Fastening Type	Contact Type	Style	Applications	Contact Material	Mounting Type	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Termination	Pitch [x]	Pitch [x]	Note	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing
Molex 0026013126	15 µin	0.38 µm	4.2 mm	0.165 in	Header	Square	2	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	UL94 V-2	Solder	Locking Ramp	Male Pin	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Through Hole Right Angle	Natural	24	4.2 mm	0.165 in	All	Gold	Tin	2.54 µm	100 µin	3.6 mm	0.142 in
Molex 0026013128	15 µin	0.38 µm	4.2 mm	0.165 in	Header	Square	2	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Locking Ramp	Male Pin	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Through Hole Right Angle	Natural	4	4.2 mm	0.165 in	All	Gold	Tin	2.54 µm	100 µin	3.6 mm	0.142 in
Molex 0026013159
Molex 0026013157					Plug		3		Polyamide (PA6) Nylon 6			Detent Lock	Male or Female				Panel Mount Snap-In		12										Crimp	3.68 mm	0.145 in	Contacts Not Included	Glow Wire Compliant	Black	-40 °C	105 ░C	3.68 mm	0.145 in
Molex 0026013127	15 µin	0.38 µm			Header	Square	2	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Locking Ramp	Male Pin	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Through Hole Right Angle	Natural	2	4.2 mm	0.165 in	All	Gold	Tin	2.54 µm	100 µin	3.6 mm	0.142 in
Molex 0026013114	15 µin	0.38 µm			Header	Square	2	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	UL94 V-2	Solder	Locking Ramp	Male Pin	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Through Hole Right Angle	Natural	2	4.2 mm	0.165 in	All	Gold	Tin	2.54 µm	100 µin	3.6 mm	0.142 in
Molex 0026013096					Plug		2						Male Pin						12										Crimp	4.2 mm	0.165 in	Contacts Not Included		Black			4.2 mm	0.165 in
Molex 0026013155
Molex 0026013115	15 µin	0.38 µm	4.2 mm	0.165 in	Header	Square	2	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	UL94 V-2	Solder	Locking Ramp	Male Pin	Board to Cable/Wire	General Purpose Industrial Telecommunications	Brass	Through Hole Right Angle	Natural	4	4.2 mm	0.165 in	All	Gold	Tin	2.54 µm	100 µin	3.6 mm	0.142 in
Molex 0026013187					Plug		2						Male Pin						18										Crimp	4.2 mm	0.165 in	Contacts Not Included		Black			4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.37
		10	$ 1.14
		100	$ 0.95
		1320	$ 0.76
		5280	$ 0.66
		10560	$ 0.63
