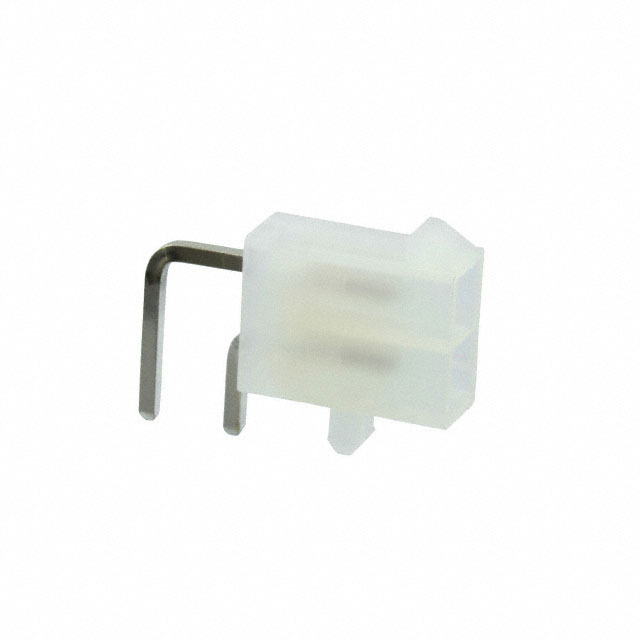

0026013114
ActiveMolex
CONN HEADER R/A 2POS
Deep-Dive with AI
Search across all available documentation for this part.
0026013114
ActiveMolex
CONN HEADER R/A 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0026013114 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
002601 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Connector Type | Contact Shape | Number of Rows | Shrouding | Insulation Material | Material Flammability Rating | Termination | Fastening Type | Contact Type | Style | Applications | Contact Material | Mounting Type | Insulation Color | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Finish - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Contact Termination | Pitch [x] | Pitch [x] | Note | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 15 µin | 0.38 µm | 4.2 mm | 0.165 in | Header | Square | 2 | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Solder | Locking Ramp | Male Pin | Board to Cable/Wire | General Purpose Industrial Telecommunications | Brass | Through Hole Right Angle | Natural | 24 | 4.2 mm | 0.165 in | All | Gold | Tin | 2.54 µm | 100 µin | 3.6 mm | 0.142 in | ||||||||||
Molex | 15 µin | 0.38 µm | 4.2 mm | 0.165 in | Header | Square | 2 | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | UL94 V-0 | Solder | Locking Ramp | Male Pin | Board to Cable/Wire | General Purpose Industrial Telecommunications | Brass | Through Hole Right Angle | Natural | 4 | 4.2 mm | 0.165 in | All | Gold | Tin | 2.54 µm | 100 µin | 3.6 mm | 0.142 in | ||||||||||
Molex | ||||||||||||||||||||||||||||||||||||||
Molex | Plug | 3 | Polyamide (PA6) Nylon 6 | Detent Lock | Male or Female | Panel Mount Snap-In | 12 | Crimp | 3.68 mm | 0.145 in | Contacts Not Included | Glow Wire Compliant | Black | -40 °C | 105 ░C | 3.68 mm | 0.145 in | |||||||||||||||||||||
Molex | 15 µin | 0.38 µm | Header | Square | 2 | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | UL94 V-0 | Solder | Locking Ramp | Male Pin | Board to Cable/Wire | General Purpose Industrial Telecommunications | Brass | Through Hole Right Angle | Natural | 2 | 4.2 mm | 0.165 in | All | Gold | Tin | 2.54 µm | 100 µin | 3.6 mm | 0.142 in | ||||||||||||
Molex | 15 µin | 0.38 µm | Header | Square | 2 | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Solder | Locking Ramp | Male Pin | Board to Cable/Wire | General Purpose Industrial Telecommunications | Brass | Through Hole Right Angle | Natural | 2 | 4.2 mm | 0.165 in | All | Gold | Tin | 2.54 µm | 100 µin | 3.6 mm | 0.142 in | ||||||||||||
Molex | Plug | 2 | Male Pin | 12 | Crimp | 4.2 mm | 0.165 in | Contacts Not Included | Black | 4.2 mm | 0.165 in | |||||||||||||||||||||||||||
Molex | ||||||||||||||||||||||||||||||||||||||
Molex | 15 µin | 0.38 µm | 4.2 mm | 0.165 in | Header | Square | 2 | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Solder | Locking Ramp | Male Pin | Board to Cable/Wire | General Purpose Industrial Telecommunications | Brass | Through Hole Right Angle | Natural | 4 | 4.2 mm | 0.165 in | All | Gold | Tin | 2.54 µm | 100 µin | 3.6 mm | 0.142 in | ||||||||||
Molex | Plug | 2 | Male Pin | 18 | Crimp | 4.2 mm | 0.165 in | Contacts Not Included | Black | 4.2 mm | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.15 | |
| 10 | $ 0.95 | |||
| 80 | $ 0.79 | |||
| 945 | $ 0.63 | |||
| 9120 | $ 0.53 | |||
| 18240 | $ 0.52 | |||
Description
General part information
002601 Series
Connector Header Through Hole, Right Angle 2 position
