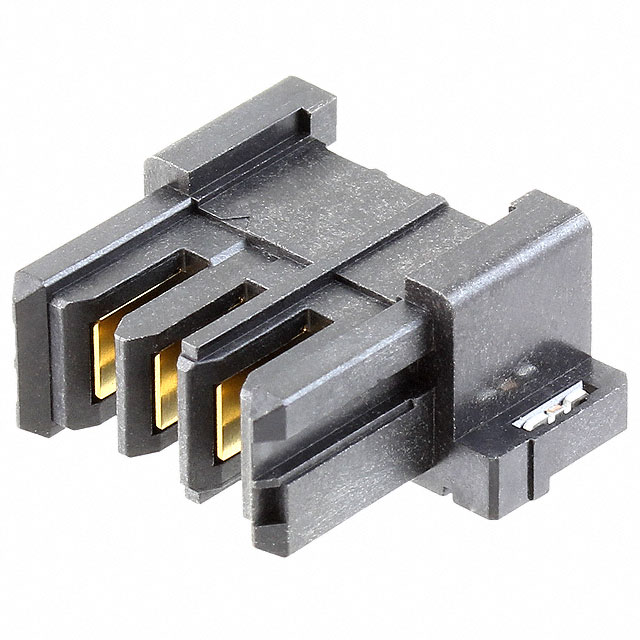

FX30B-3P-3.81DS

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] 25A MAX., POSITION MISALIGNMENT ABSORPTION, POWER SUPPLY FOR BOARD-TO-BOARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX30B-3P-3.81DS Spec

FX30B-3P-3.81DS

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] 25A MAX., POSITION MISALIGNMENT ABSORPTION, POWER SUPPLY FOR BOARD-TO-BOARD

Deep-Dive with AI

DocumentsFX30B-3P-3.81DS Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX30B-3P-3.81DS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	0.433 in
Insulation Height	11 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	3.81 mm
Pitch - Mating	0.15 in
Shrouding	Shrouded - 2 Wall
Termination	Solder
Voltage Rating	250 VDC

FX30B Series

Part	Contact Length - Post	Contact Length - Post	Contact Type	Features	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Rows	Contact Material	Number of Positions Loaded	Mated Stacking Heights	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Termination	Mounting Type	Insulation Color	Connector Type	Material Flammability Rating	Applications
Hirose Electric USA, Inc. FX30B-2P-3.81DSA25	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All	25 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.756 in	19.2 mm	2	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-3.81DSA20	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All	20 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.559 "	14.2 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2S-3.81DSA	0.13 in	3.3 mm	Female Blade Socket	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular		1 çm	39.4 çin	Latch Holder	0.63 in	16 mm	2	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Receptacle	UL94 V-0	General Purpose
Hirose Electric USA, Inc. FX30B-4P-3.81DSA20	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All	20 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.559 "	14.2 mm	4	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-7.62DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-3.81DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-5P-3.81DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2P-7.62DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm	2	7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-4P-3.81DSA30	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All	30 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.953 in	24.2 mm	4	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2S-7.62DS	0.13 in	3.3 mm	Female Blade Socket	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	600 V	Rectangular		1 çm	39.4 çin	Latch Holder	0.433 in	11 mm	2	7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Receptacle	UL94 V-0	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.34
		24	$ 5.10
		96	$ 4.38
		456	$ 3.73
		960	$ 3.47
Newark	Each	1	$ 5.70
		504	$ 5.06

Description

General part information

FX30B Series

Connector Header Through Hole, Right Angle 3 position 0.150" (3.81mm)

Documents

Technical documentation and resources

FX30B-3P-3.81DS Spec

Datasheet
