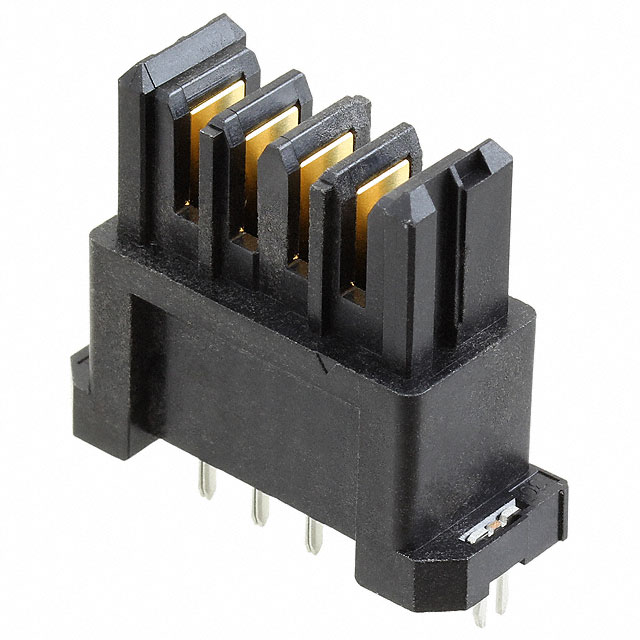

FX30B-4P-3.81DSA30

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX30B-4P-3.81DSA30 Spec

FX30B-4P-3.81DSA30

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 3.81MM

Deep-Dive with AI

DocumentsFX30B-4P-3.81DSA30 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX30B-4P-3.81DSA30

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	13 A
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	24.2 mm
Insulation Height	0.953 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	30 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	3.81 mm
Pitch - Mating	0.15 in
Shrouding	Shrouded - 2 Wall
Termination	Solder
Voltage Rating	250 VDC

FX30B Series

Part	Contact Length - Post	Contact Length - Post	Contact Type	Features	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Rows	Contact Material	Number of Positions Loaded	Mated Stacking Heights	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Termination	Mounting Type	Insulation Color	Connector Type	Material Flammability Rating	Applications
Hirose Electric USA, Inc. FX30B-2P-3.81DSA25	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All	25 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.756 in	19.2 mm	2	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-3.81DSA20	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All	20 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.559 "	14.2 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2S-3.81DSA	0.13 in	3.3 mm	Female Blade Socket	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular		1 çm	39.4 çin	Latch Holder	0.63 in	16 mm	2	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Receptacle	UL94 V-0	General Purpose
Hirose Electric USA, Inc. FX30B-4P-3.81DSA20	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All	20 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.559 "	14.2 mm	4	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-7.62DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-3P-3.81DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-5P-3.81DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm		3.81 mm	0.15 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2P-7.62DS	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	16 A	1	Copper Alloy	All		105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.433 in	11 mm	2	7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-4P-3.81DSA30	0.13 in	3.3 mm	Male Blade	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	13 A	1	Copper Alloy	All	30 mm	105 ░C	-55 °C	250 VDC	Rectangular	Shrouded - 2 Wall	1 çm	39.4 çin	Push-Pull	0.953 in	24.2 mm	4	3.81 mm	0.15 in	Gold	Solder	Through Hole	Black	Header	UL94 V-0
Hirose Electric USA, Inc. FX30B-2S-7.62DS	0.13 in	3.3 mm	Female Blade Socket	Board Guide Board Lock	Nylon Polyamide (PA)	Tin	0.099 µm	3.9 µin	15 A	1	Copper Alloy	All		105 ░C	-55 °C	600 V	Rectangular		1 çm	39.4 çin	Latch Holder	0.433 in	11 mm	2	7.62 mm	0.3 in	Gold	Solder	Through Hole Right Angle	Black	Receptacle	UL94 V-0	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.23
		35	$ 4.50
		105	$ 4.18
		455	$ 3.55
		945	$ 3.03

Description

General part information

FX30B Series

Connector Header Through Hole 4 position 0.150" (3.81mm)

Documents

Technical documentation and resources

FX30B-4P-3.81DSA30 Spec

Datasheet
