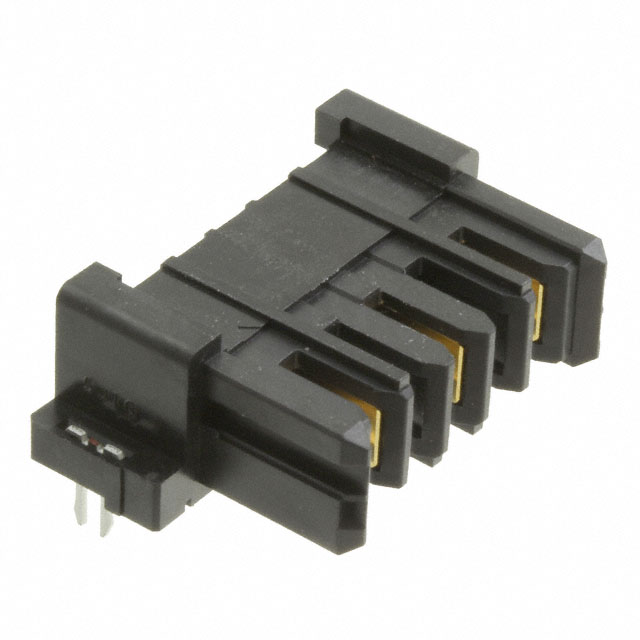

FX30B-3P-7.62DS
ActiveHirose Electric USA, Inc.
CONN HEADER R/A 3POS 7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsFX30B-3P-7.62DS Spec
FX30B-3P-7.62DS
ActiveHirose Electric USA, Inc.
CONN HEADER R/A 3POS 7.62MM
Deep-Dive with AI
DocumentsFX30B-3P-7.62DS Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | FX30B-3P-7.62DS |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating (Amps) | 15 A |
| Fastening Type | Push-Pull |
| Features | Board Guide, Board Lock |
| Insulation Color | Black |
| Insulation Height | 0.433 in |
| Insulation Height | 11 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.3 in |
| Pitch - Mating | 7.62 mm |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Voltage Rating | 250 VDC |
FX30B Series
| Part | Contact Length - Post | Contact Length - Post | Contact Type | Features | Insulation Material | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Rows | Contact Material | Number of Positions Loaded | Mated Stacking Heights | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Shape | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Termination | Mounting Type | Insulation Color | Connector Type | Material Flammability Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 16 A | 1 | Copper Alloy | All | 25 mm | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.756 in | 19.2 mm | 2 | 3.81 mm | 0.15 in | Gold | Solder | Through Hole | Black | Header | UL94 V-0 | |
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 15 A | 1 | Copper Alloy | All | 20 mm | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.559 " | 14.2 mm | 3.81 mm | 0.15 in | Gold | Solder | Through Hole | Black | Header | UL94 V-0 | ||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Female Blade Socket | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 16 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 250 VDC | Rectangular | 1 çm | 39.4 çin | Latch Holder | 0.63 in | 16 mm | 2 | 3.81 mm | 0.15 in | Gold | Solder | Through Hole | Black | Receptacle | UL94 V-0 | General Purpose | ||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 13 A | 1 | Copper Alloy | All | 20 mm | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.559 " | 14.2 mm | 4 | 3.81 mm | 0.15 in | Gold | Solder | Through Hole | Black | Header | UL94 V-0 | |
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 15 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.433 in | 11 mm | 7.62 mm | 0.3 in | Gold | Solder | Through Hole Right Angle | Black | Header | UL94 V-0 | |||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 15 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.433 in | 11 mm | 3.81 mm | 0.15 in | Gold | Solder | Through Hole Right Angle | Black | Header | UL94 V-0 | |||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 13 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.433 in | 11 mm | 3.81 mm | 0.15 in | Gold | Solder | Through Hole Right Angle | Black | Header | UL94 V-0 | |||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 16 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.433 in | 11 mm | 2 | 7.62 mm | 0.3 in | Gold | Solder | Through Hole Right Angle | Black | Header | UL94 V-0 | ||
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Male Blade | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 13 A | 1 | Copper Alloy | All | 30 mm | 105 ░C | -55 °C | 250 VDC | Rectangular | Shrouded - 2 Wall | 1 çm | 39.4 çin | Push-Pull | 0.953 in | 24.2 mm | 4 | 3.81 mm | 0.15 in | Gold | Solder | Through Hole | Black | Header | UL94 V-0 | |
Hirose Electric USA, Inc. | 0.13 in | 3.3 mm | Female Blade Socket | Board Guide Board Lock | Nylon Polyamide (PA) | Tin | 0.099 µm | 3.9 µin | 15 A | 1 | Copper Alloy | All | 105 ░C | -55 °C | 600 V | Rectangular | 1 çm | 39.4 çin | Latch Holder | 0.433 in | 11 mm | 2 | 7.62 mm | 0.3 in | Gold | Solder | Through Hole Right Angle | Black | Receptacle | UL94 V-0 | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.33 | |
| 20 | $ 4.84 | |||
| 80 | $ 4.26 | |||
| 440 | $ 3.62 | |||
| 960 | $ 3.09 | |||
Description
General part information
FX30B Series
Connector Header Through Hole, Right Angle 3 position 0.300" (7.62mm)
