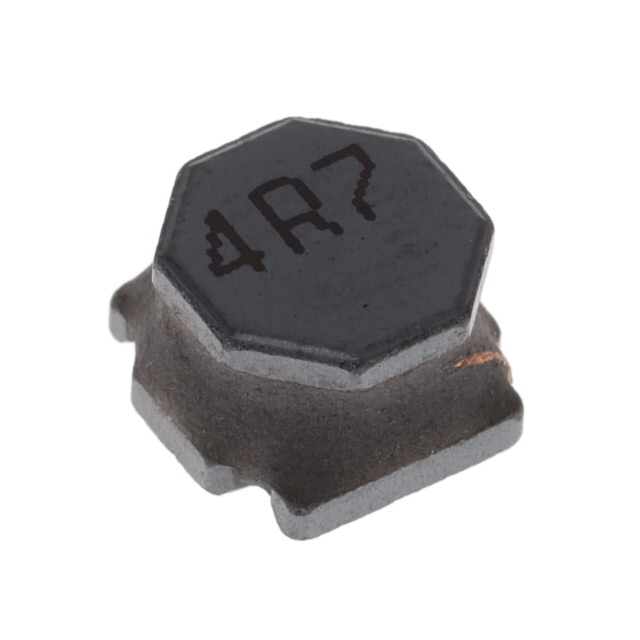

SDES064T-4R7MS

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 4.75A 26MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 4.75A 26MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Inductance	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Current Rating (Amps)	Mounting Type	DC Resistance (DCR) [Max]	Package / Case	Current - Saturation (Isat)	DC Resistance (DCR)
Delta Electronics/Cyntec SDES064T-3R3MS	3.3 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	5.1 A	Surface Mount	24 mOhm	Nonstandard	5 A
Delta Electronics/Cyntec SDES064T-100MS	10 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	3.4 A	Surface Mount		Nonstandard	3.1 A	49 mOhm
Delta Electronics/Cyntec SDES064T-4R7MS	4.7 ÁH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	4.75 A	Surface Mount	26 mOhm	Nonstandard	4.5 A
Delta Electronics/Cyntec SDES064T-221MS	220 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	0.64 A	Surface Mount	1.04 Ohm	Nonstandard	640 mA
Delta Electronics/Cyntec SDES064T-6R8MS	6.8 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	4.2 A	Surface Mount		Nonstandard	3.7 A	39 mOhm
Delta Electronics/Cyntec SDES064T-101MS	100 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	1.05 A	Surface Mount	530 mOhm	Nonstandard	950 mA
Delta Electronics/Cyntec SDES064T-680MS	68 µH	Shielded	0.157 in	4 mm	20 %	-55 °C	125 °C	0.236 in	6 mm	0.236 in	6 mm	100 kHz	1.2 A	Surface Mount	360 mOhm	Nonstandard	1.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µH Shielded Inductor 4.75 A 26mOhm Max Nonstandard
