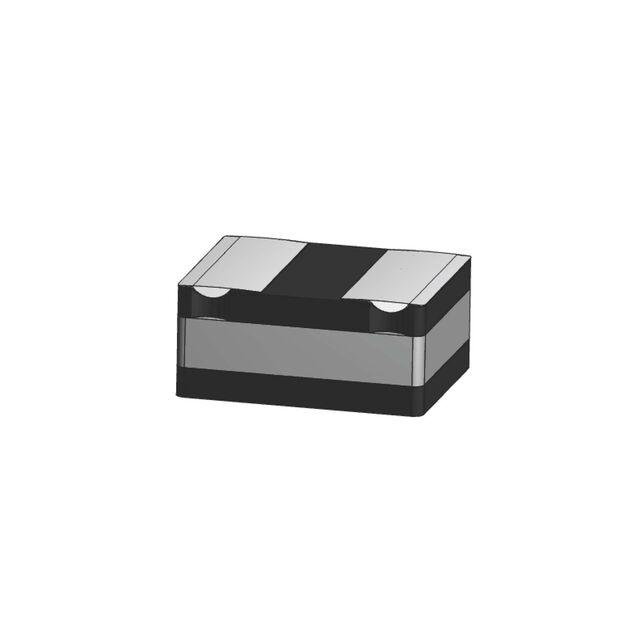

SDES064T-6R8MS
ActiveDelta Electronics/Cyntec
FIXED IND 6.8UH 4.2A 39MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SDES064T-6R8MS
ActiveDelta Electronics/Cyntec
FIXED IND 6.8UH 4.2A 39MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDES064T-6R8MS |
|---|---|
| Current - Saturation (Isat) | 3.7 A |
| Current Rating (Amps) | 4.2 A |
| DC Resistance (DCR) | 39 mOhm |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.27 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| Tape & Reel (TR) | 1000 | $ 0.14 | ||
| 3000 | $ 0.13 | |||
| 5000 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
SDES064T Series
6.8 µH Shielded Inductor 4.2 A 39mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
