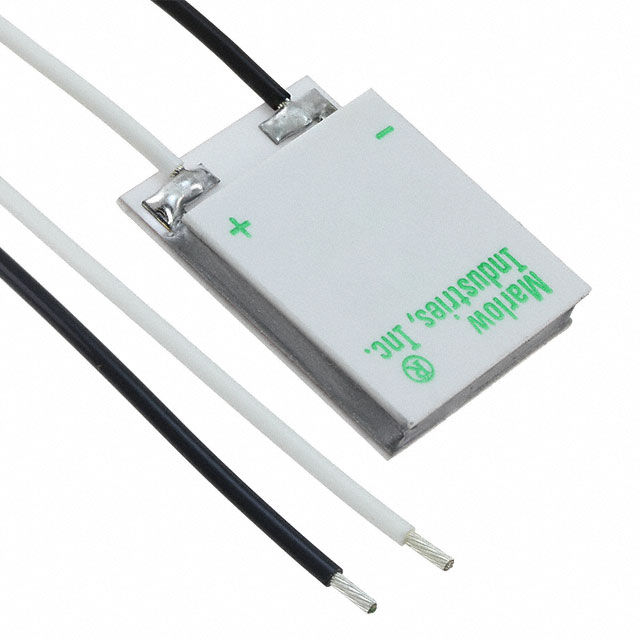

RC3-6-01LS
ActiveMarlow Industries, Inc.
TEM 20.1X20.1X3.91MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC3-6-01LS
ActiveMarlow Industries, Inc.
TEM 20.1X20.1X3.91MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC3-6-01LS |
|---|---|
| Current - Max [Max] | 5.6 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.91 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 13 W |
| Resistance | 500 mOhms |
| Size / Dimension [x] | 24.6 mm |
| Size / Dimension [y] | 20.1 mm |
| Voltage - Max [Max] | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.01 | |
| 5 | $ 18.78 | |||
| 10 | $ 18.34 | |||
| 25 | $ 17.67 | |||
| 50 | $ 17.22 | |||
| 100 | $ 16.77 | |||
Description
General part information
RC3-6 Series
Peltier Module 13.0W @ 27°C 5.6 A 130°C
