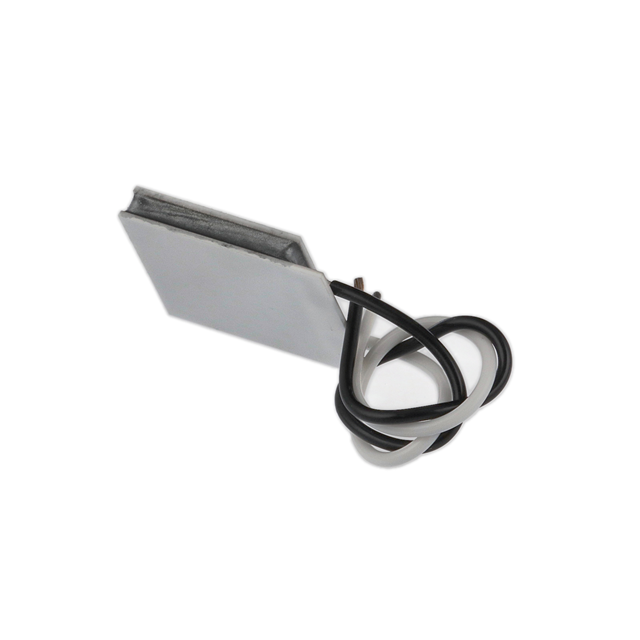

RC3-6-01S

Active

Marlow Industries, Inc.

TEM 20.1X20.1X3.91MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 20.1X20.1X3.91MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Features	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Resistance	Height [z]	Number of Stages	Current - Max [Max]	Qmax @ Th	Voltage - Max [Max]
Marlow Industries, Inc. RC3-6-01	130 °C	Lead Wires	65 °C	24.6 mm	20.1 mm	500 mOhms	4.01 mm	1	5.6 A	13 W	3.6 V
Marlow Industries, Inc. RC3-6-01LS	130 °C	Lapped Lead Wires Sealed	65 °C	24.6 mm	20.1 mm	500 mOhms	3.91 mm	1	5.6 A	13 W	3.6 V
Marlow Industries, Inc. RC3-6-01S	130 °C	Lead Wires Sealed	65 °C	24.6 mm	20.1 mm	500 mOhms	4.01 mm	1	5.6 A	13 W	3.6 V
Marlow Industries, Inc. RC3-6-01L	130 °C	Lapped Lead Wires	65 °C	24.6 mm	20.1 mm	500 mOhms	3.91 mm	1	5.6 A	13 W	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 13.0W @ 27°C 5.6 A 130°C

Technical documentation and resources

No documents available
