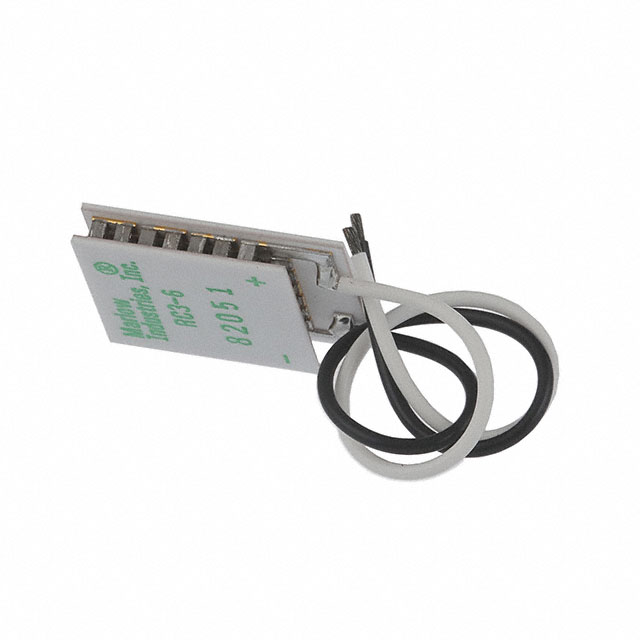

RC3-6-01
ActiveMarlow Industries, Inc.
TEM 20.1X20.1X3.91MM
Deep-Dive with AI
Search across all available documentation for this part.
RC3-6-01
ActiveMarlow Industries, Inc.
TEM 20.1X20.1X3.91MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RC3-6-01 |
|---|---|
| Current - Max [Max] | 5.6 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lead Wires |
| Height [z] | 4.01 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 13 W |
| Resistance | 500 mOhms |
| Size / Dimension [x] | 24.6 mm |
| Size / Dimension [y] | 20.1 mm |
| Voltage - Max [Max] | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.80 | |
| 5 | $ 16.71 | |||
| 10 | $ 16.32 | |||
| 25 | $ 15.72 | |||
| 50 | $ 15.33 | |||
Description
General part information
RC3-6 Series
Peltier Module 13.0W @ 27°C 5.6 A 130°C
Documents
Technical documentation and resources
No documents available
