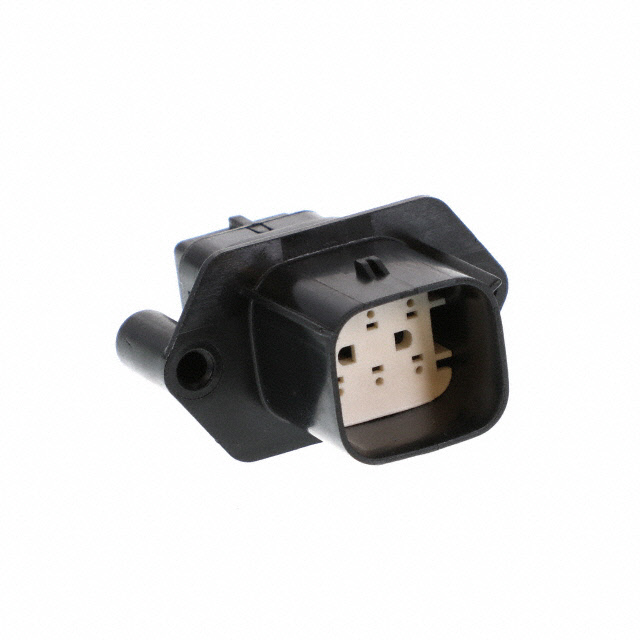

0194350612

Active

Molex

CONN PLUG HSG 6POS 5.84MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150 Series MX150L Series Assembly Instr

0194350612

Active

Molex

CONN PLUG HSG 6POS 5.84MM

Deep-Dive with AI

DocumentsMX150 Series MX150L Series Assembly Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194350612

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Sealed
Insulation Material	Polyester, Glass Filled, Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5.84 mm
Pitch [x]	0.23 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

019435 Series

Part	Number of Rows	Color	Pitch [x]	Pitch [x]	Note	Row Spacing [Max]	Row Spacing [Max]	Features	Number of Positions	Fastening Type	Contact Type	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material
Molex 0194350813	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug
Molex 0194350814	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350811	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351214	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	12	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350819	2	Gray	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350612	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	6	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350812	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351213	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	12	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351014	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	10	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350614	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	6	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.48
		10	$ 5.67
		240	$ 4.59
		1200	$ 3.78

Description

General part information

019435 Series

6 Rectangular Connectors - Housings Plug Black 0.230" (5.84mm)

Documents

Technical documentation and resources

MX150 Series

Datasheet

MX150L Series Assembly Instr

Datasheet
