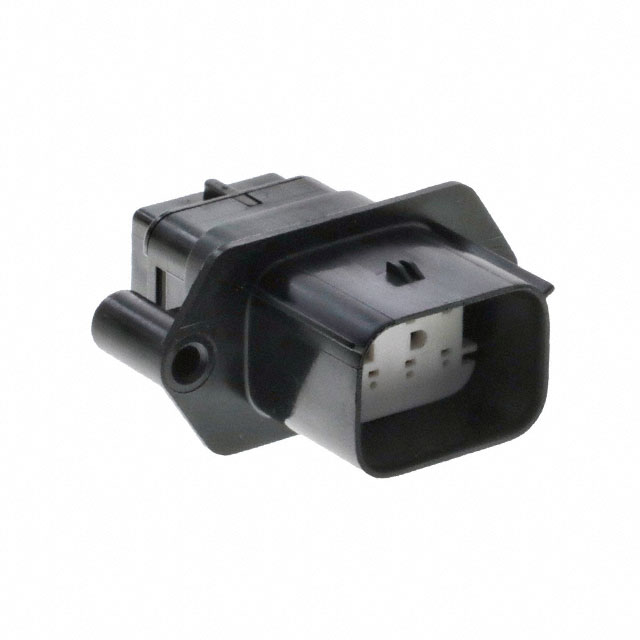

0194350814
ActiveMolex
CONN PLUG HSG 8POS 5.84MM
Deep-Dive with AI
Search across all available documentation for this part.
0194350814
ActiveMolex
CONN PLUG HSG 8POS 5.84MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0194350814 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Features | Sealed |
| Insulation Material | Polyester, Glass Filled, Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5.84 mm |
| Pitch [x] | 0.23 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.78 | |
| 10 | $ 4.91 | |||
| 192 | $ 3.98 | |||
| 576 | $ 3.69 | |||
| 1152 | $ 3.35 | |||
Description
General part information
019435 Series
8 Rectangular Connectors - Housings Plug Black 0.230" (5.84mm)
