0194351214

Active

Molex

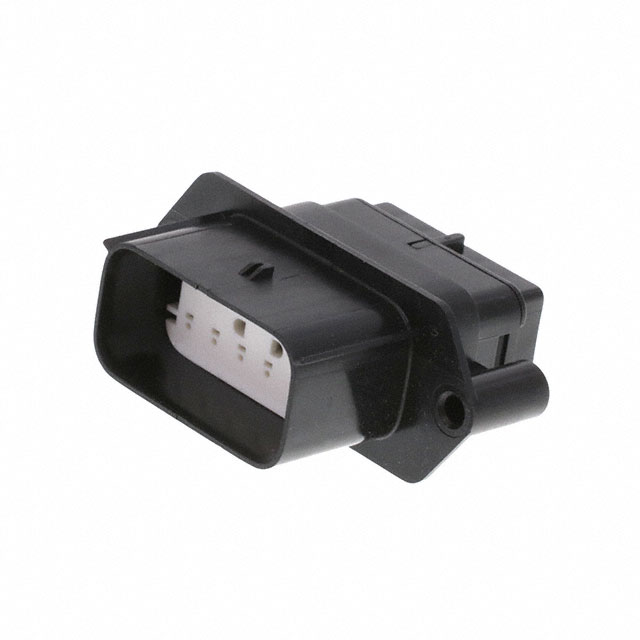

CONN PLUG HSG 12POS 5.84MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150L Series Assembly Instr MX150 Series

0194351214

Active

Molex

CONN PLUG HSG 12POS 5.84MM

Deep-Dive with AI

DocumentsMX150L Series Assembly Instr MX150 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194351214

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Sealed
Insulation Material	Polyester, Glass Filled, Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5.84 mm
Pitch [x]	0.23 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

019435 Series

Part	Number of Rows	Color	Pitch [x]	Pitch [x]	Note	Row Spacing [Max]	Row Spacing [Max]	Features	Number of Positions	Fastening Type	Contact Type	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material
Molex 0194350813	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug
Molex 0194350814	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350811	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351214	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	12	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350819	2	Gray	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350612	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	6	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350812	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	8	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351213	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	12	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194351014	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	10	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
Molex 0194350614	2	Black	5.84 mm	0.23 in	Contacts Not Included	0.236 in	6 mm	Sealed	6	Locking Ramp	Male Blade	Crimp	Plug	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester Glass Filled
