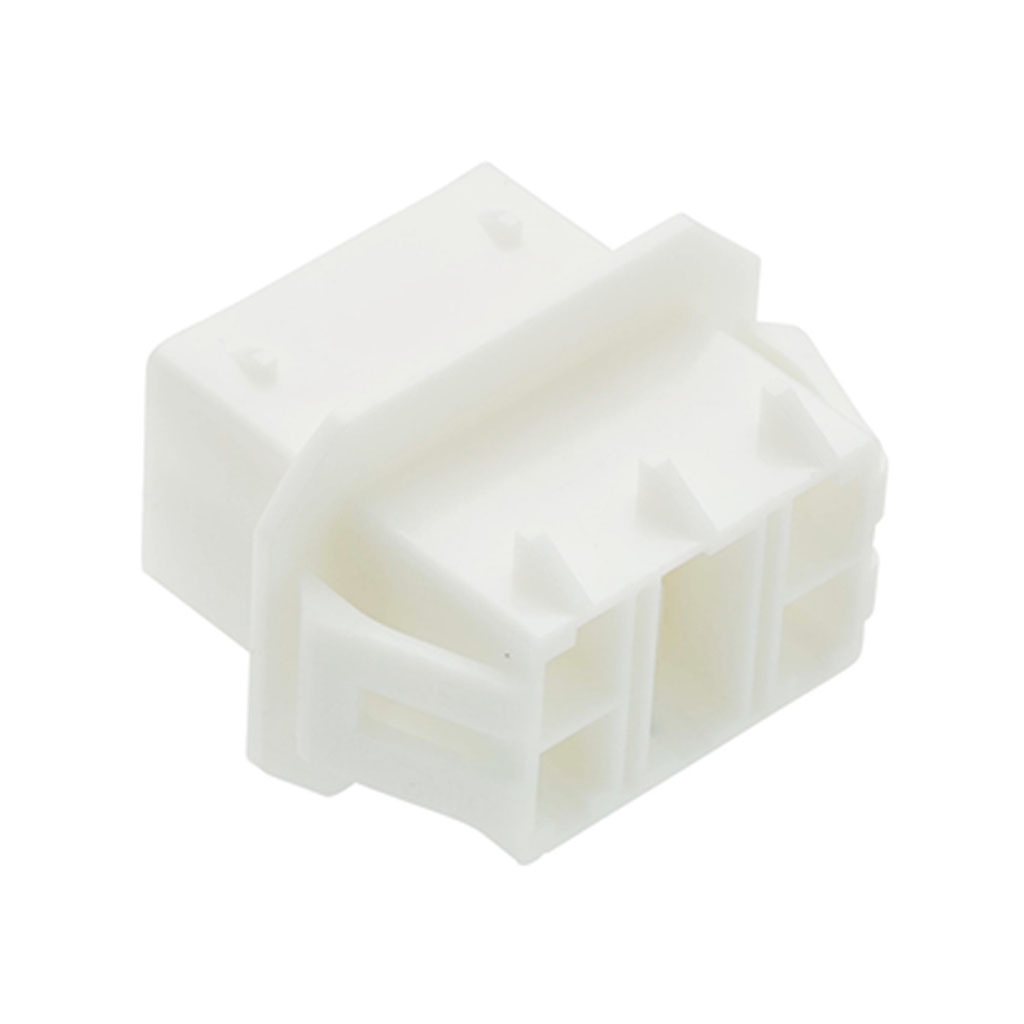

0351800609

Active

Molex

CONN HOUSING RCP 6 POS 8.5MM CRIMP ST PANEL MOUNT NATURAL VERSABLADE BAG

Search across all available documentation for this part.

Active

Molex

CONN HOUSING RCP 6 POS 8.5MM CRIMP ST PANEL MOUNT NATURAL VERSABLADE BAG

Technical Specifications

Parameters and characteristics for this part

Specification	0351800609

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Blade Socket, Male Blade
Fastening Type	Locking Ramp
Material - Insulation	Polycarbonate (PC), Polyethylene Terephthalate (PET)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.335 in
Pitch [x]	8.5 mm
Row Spacing	8 mm
Row Spacing	0.315 in
Stacking Direction	Top to Bottom and Side to Side

Part	Row Spacing	Row Spacing	Stacking Direction	Number of Positions	Material - Insulation	Contact Type	Voltage Rating	Number of Rows	Note	Fastening Type	Connector Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0351804409
Molex 0351804609
Molex 0351800404	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polybutylene Terephthalate (PBT)	Female Blade Socket Male Blade	300 VDC	2	Contacts Not Included	Locking Ramp	Receptacle	Crimp	Blue	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351800609	8 mm	0.315 in	Top to Bottom and Side to Side	6	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.335 in	8.5 mm	-40 °C	120 °C
Molex 0351800409	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351803409	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351800600	8 mm	0.315 in	Top to Bottom and Side to Side	6	Polybutylene Terephthalate (PBT)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Natural	0.335 in	8.5 mm	-40 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.49

General part information

6 Position Blade Type Power Housing Connector Plug Yellow 0.335" (8.50mm)
