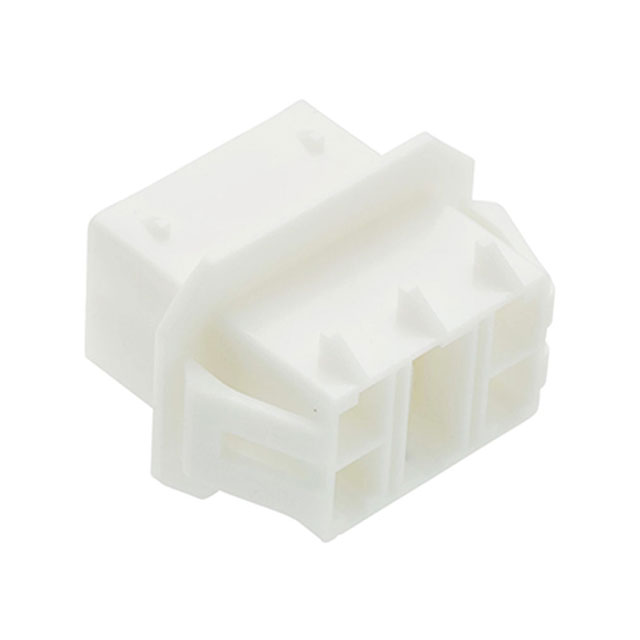

0351804409

Active

Molex

CONN HSG RCPT 4POS

Search across all available documentation for this part.

Active

Molex

CONN HSG RCPT 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	0351804409

null

Part	Row Spacing	Row Spacing	Stacking Direction	Number of Positions	Material - Insulation	Contact Type	Voltage Rating	Number of Rows	Note	Fastening Type	Connector Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0351804409
Molex 0351804609
Molex 0351800404	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polybutylene Terephthalate (PBT)	Female Blade Socket Male Blade	300 VDC	2	Contacts Not Included	Locking Ramp	Receptacle	Crimp	Blue	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351800609	8 mm	0.315 in	Top to Bottom and Side to Side	6	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.335 in	8.5 mm	-40 °C	120 °C
Molex 0351800409	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351803409	8 mm	0.315 in	Top to Bottom and Side to Side	4	Polycarbonate (PC) Polyethylene Terephthalate (PET)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Yellow	0.343 in	8.7 mm	-40 °C	120 °C
Molex 0351800600	8 mm	0.315 in	Top to Bottom and Side to Side	6	Polybutylene Terephthalate (PBT)	Female Blade Socket Male Blade		2	Contacts Not Included	Locking Ramp	Plug	Crimp	Natural	0.335 in	8.5 mm	-40 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1800	$ 0.42

General part information

Position Blade Type Power Housing Connector

Technical documentation and resources

No documents available
