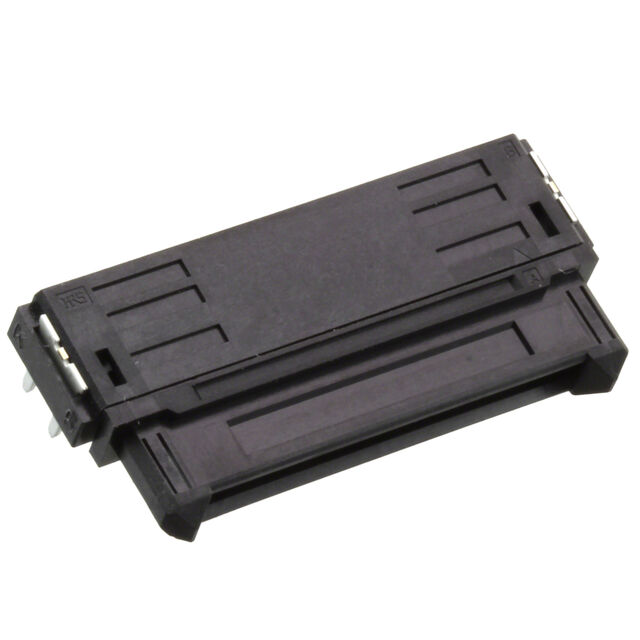

FX22-40P-0.5SH
ActiveHirose Electric USA, Inc.
CONN PLUG 40POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
FX22-40P-0.5SH
ActiveHirose Electric USA, Inc.
CONN PLUG 40POS R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FX22-40P-0.5SH |
|---|---|
| Connector Type | Plug, Non-Gendered |
| Features | Board Guide |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.98 | |
| 10 | $ 2.71 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| 250 | $ 2.09 | |||
| Digi-Reel® | 1 | $ 2.98 | ||
| 10 | $ 2.71 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| 250 | $ 2.09 | |||
| Tape & Reel (TR) | 500 | $ 1.85 | ||
| 1000 | $ 1.72 | |||
| 1500 | $ 1.66 | |||
| 2500 | $ 1.58 | |||
| 3500 | $ 1.53 | |||
| 5000 | $ 1.48 | |||
Description
General part information
FX22 Series
40 Position Connector Plug, Non-Gendered Surface Mount, Right Angle
