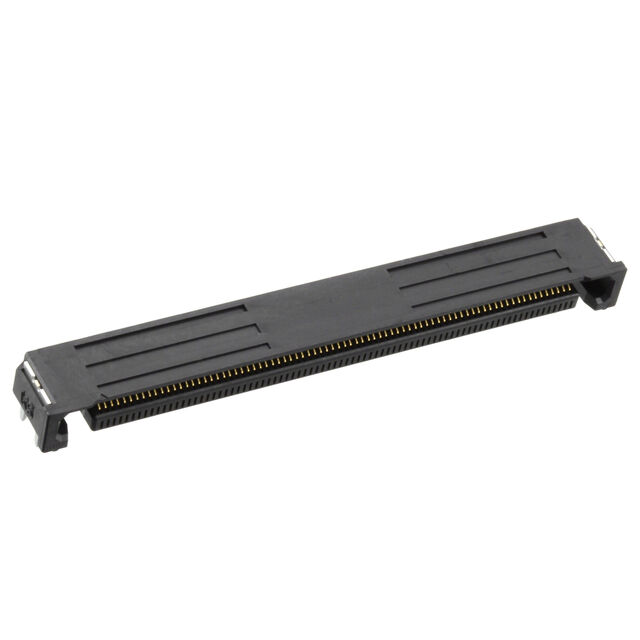

FX22-80S-0.5SH
ActiveHirose Electric USA, Inc.
CONN RCPT 80POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
FX22-80S-0.5SH
ActiveHirose Electric USA, Inc.
CONN RCPT 80POS R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FX22-80S-0.5SH |
|---|---|
| Connector Type | Receptacle, Non-Gendered |
| Features | Board Guide |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 80 |
| Number of Rows | 1 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.77 | |
| 10 | $ 4.33 | |||
| 25 | $ 4.10 | |||
| 50 | $ 4.01 | |||
| 100 | $ 3.82 | |||
| 250 | $ 3.34 | |||
| Tape & Reel (TR) | 700 | $ 2.28 | ||
Description
General part information
FX22 Series
80 Position Connector Receptacle, Non-Gendered Surface Mount, Right Angle
Documents
Technical documentation and resources
