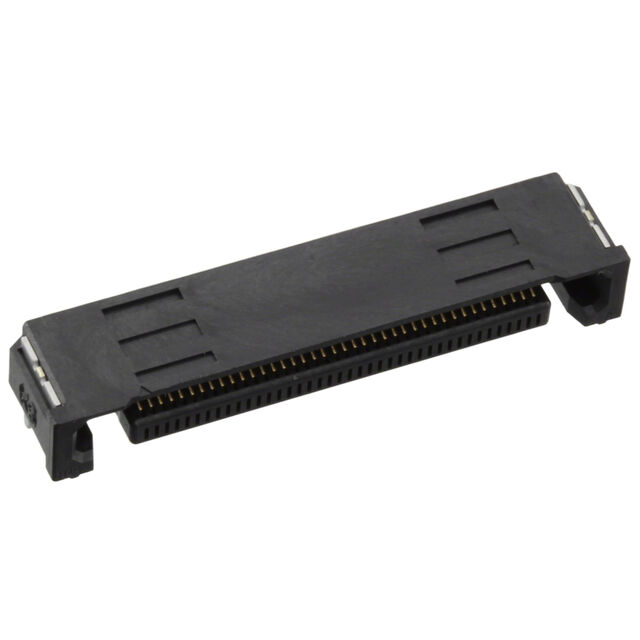

FX22-40S-0.5SH
ActiveHirose Electric USA, Inc.
CONN RCPT 40POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
FX22-40S-0.5SH
ActiveHirose Electric USA, Inc.
CONN RCPT 40POS R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FX22-40S-0.5SH |
|---|---|
| Connector Type | Receptacle, Non-Gendered |
| Features | Board Guide |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.59 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.16 | |||
| 50 | $ 2.11 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.82 | |||
| Digi-Reel® | 1 | $ 2.59 | ||
| 10 | $ 2.25 | |||
| 25 | $ 2.16 | |||
| 50 | $ 2.11 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.82 | |||
| Tape & Reel (TR) | 700 | $ 1.47 | ||
| 1400 | $ 1.37 | |||
| 2100 | $ 1.32 | |||
| 3500 | $ 1.25 | |||
| 4900 | $ 1.21 | |||
| 7000 | $ 1.19 | |||
Description
General part information
FX22 Series
40 Position Connector Receptacle, Non-Gendered Surface Mount, Right Angle
