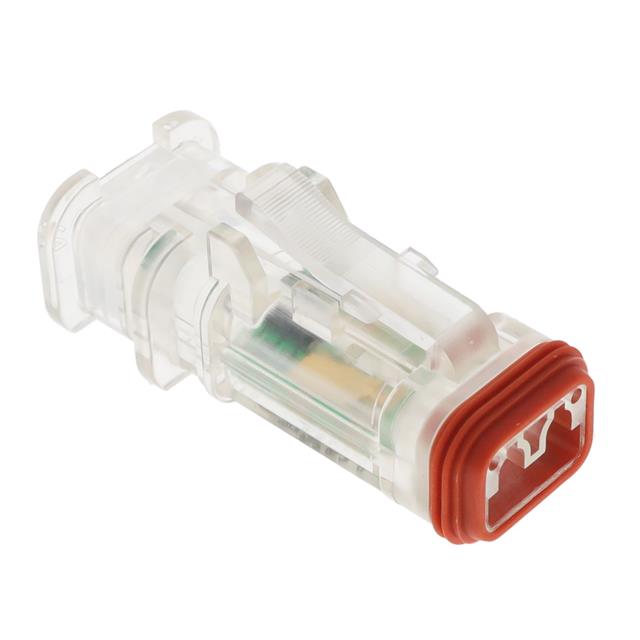

AT06-2S-LED24V01-OMC

Active

Amphenol Sine Systems Corp

2 POSITION LED OVERMOLD PLUG, SO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Structure+ Family

AT06-2S-LED24V01-OMC

Active

Amphenol Sine Systems Corp

2 POSITION LED OVERMOLD PLUG, SO

Deep-Dive with AI

DocumentsDatasheet Structure+ Family

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-2S-LED24V01-OMC

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP69K, Sealed, IP68, LED
Insulation Material	Polycarbonate (PC)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

AT06-2S Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Note	Fastening Type	Mounting Type	Color	Contact Type	Number of Rows	Features	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Wire Type	Cable Termination
Amphenol Sine Systems Corp AT06-2S-BLU	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-KIT01				Plug	2		Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Wedge Lock		16 AWG	18 AWG	Discrete	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24K1	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Black	Female Socket	1	LED	Crimp
Amphenol Sine Systems Corp AT06-2S-LED12V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDGRN	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Green	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDBLU	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-MM03	Thermoplastic	-55 °C	125 °C			Contacts Not Included
Amphenol Sine Systems Corp AT06-2S-LED24VR1-OM	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP67/IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED1230	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Cap (Cover) LED Sealed Strain Relief	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.03
		10	$ 8.00
		25	$ 7.69
		50	$ 7.38
		100	$ 7.22

Description

General part information

AT06-2S Series

2 Rectangular Connectors - Housings Plug Natural
