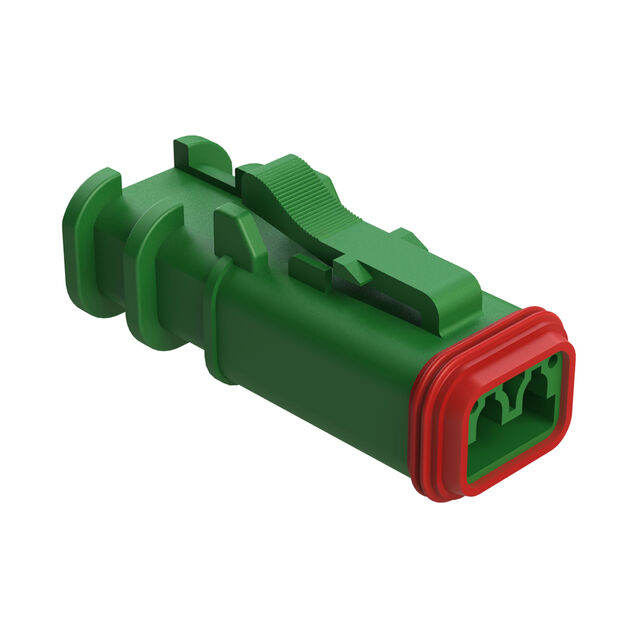

AT06-2S-OMRDGRN
ActiveAmphenol Sine Systems Corp
2 POSITION OVERMOLDED PLUG, SOCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT06-2S-OMRDGRN
ActiveAmphenol Sine Systems Corp
2 POSITION OVERMOLDED PLUG, SOCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT06-2S-OMRDGRN |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT06-2S Series
| Part | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Note | Fastening Type | Mounting Type | Color | Contact Type | Number of Rows | Features | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Wire Type | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Thermoplastic | -55 °C | 125 °C | Plug | 2 | Contacts Not Included | Latch Lock | Free Hanging (In-Line) | Blue | Female Socket | 1 | Sealed | Crimp | ||||
Amphenol Sine Systems Corp | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Gray | Female Socket | 1 | Wedge Lock | 16 AWG | 18 AWG | Discrete | Crimp | |||||
Amphenol Sine Systems Corp | Thermoplastic | -55 °C | 125 °C | Plug | 2 | Contacts Not Included | Latch Lock | Free Hanging (In-Line) | Black | Female Socket | 1 | LED | Crimp | ||||
Amphenol Sine Systems Corp | Polycarbonate (PC) | -40 °C | 85 °C | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Natural | Female Socket | 1 | IP68 IP69K LED Sealed | Crimp | |||||
Amphenol Sine Systems Corp | Polyamide (PA66) Nylon 6/6 Glass Filled | -55 °C | 125 °C | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Green | Female Socket | 1 | Sealed | Crimp | |||||
Amphenol Sine Systems Corp | Polyamide (PA66) Nylon 6/6 Glass Filled | -55 °C | 125 °C | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Blue | Female Socket | 1 | Sealed | Crimp | |||||
Amphenol Sine Systems Corp | Thermoplastic | -55 °C | 125 °C | Contacts Not Included | |||||||||||||
Amphenol Sine Systems Corp | Polycarbonate (PC) | -40 °C | 85 °C | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Natural | Female Socket | 1 | IP67/IP69K LED Sealed | Crimp | |||||
Amphenol Sine Systems Corp | Polycarbonate (PC) | -40 °C | 85 °C | Plug | 2 | Latch Lock | Free Hanging (In-Line) | Natural | Female Socket | 1 | IP68 IP69K LED Sealed | Crimp | |||||
Amphenol Sine Systems Corp | Thermoplastic | -55 °C | 125 °C | Plug | 2 | Contacts Not Included | Latch Lock | Free Hanging (In-Line) | Gray | Female Socket | 1 | Cap (Cover) LED Sealed Strain Relief | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.07 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.73 | |||
| 50 | $ 1.69 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.46 | |||
| 500 | $ 1.34 | |||
| 1000 | $ 1.15 | |||
| 2500 | $ 1.07 | |||
Description
General part information
AT06-2S Series
2 Rectangular Connectors - Housings Plug Green
Documents
Technical documentation and resources
